Jetta L5-2.5L (CBTA) (2008)
Power and Ground Distribution
Fuse / Component Information
Application and ID / Relay and Fuse Arrangements, From July 2007
Page 4785
Page 3

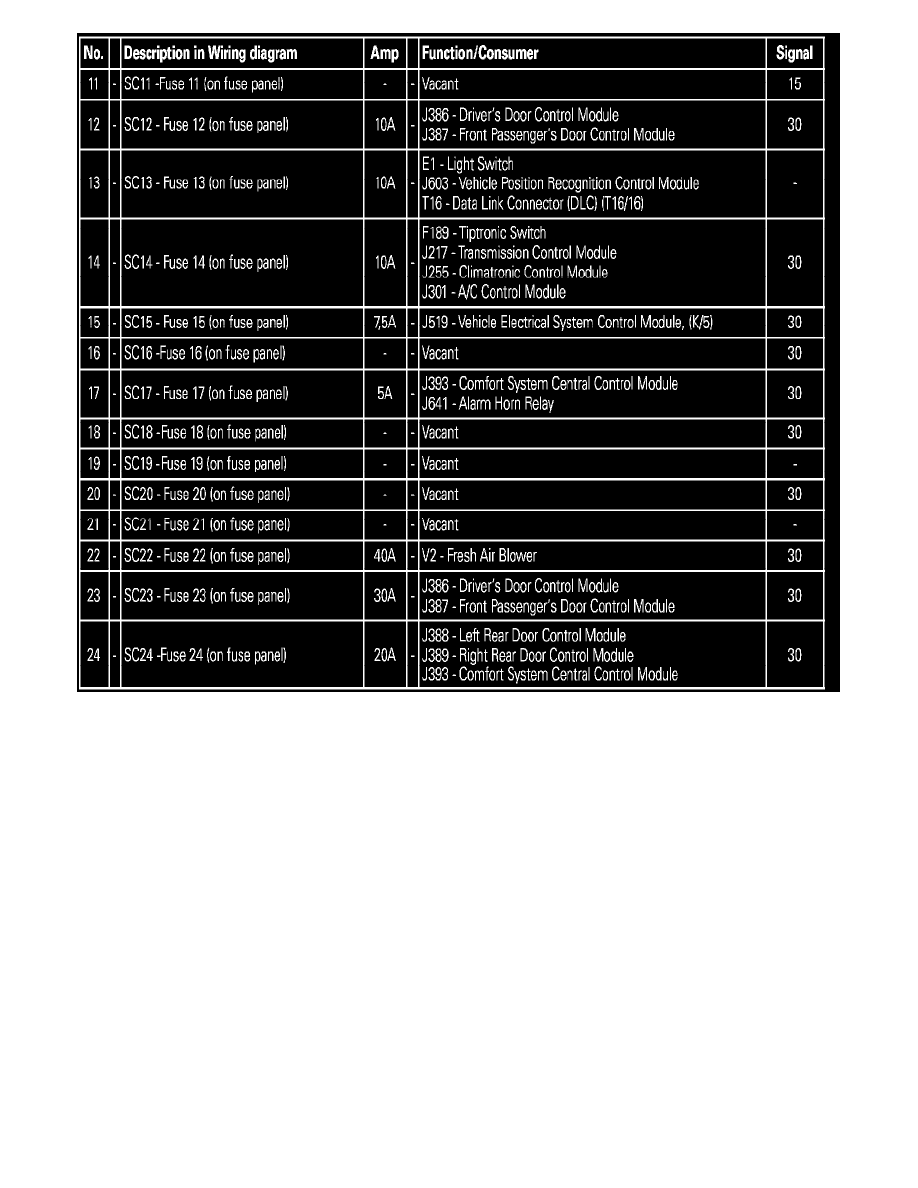

Fuses 11 To 24
Power and Ground Distribution
Fuse / Component Information
Application and ID / Relay and Fuse Arrangements, From July 2007
Page 4785
