Jetta L5-2.5L (CBTA) (2008)
/Page-1028003.png)
-

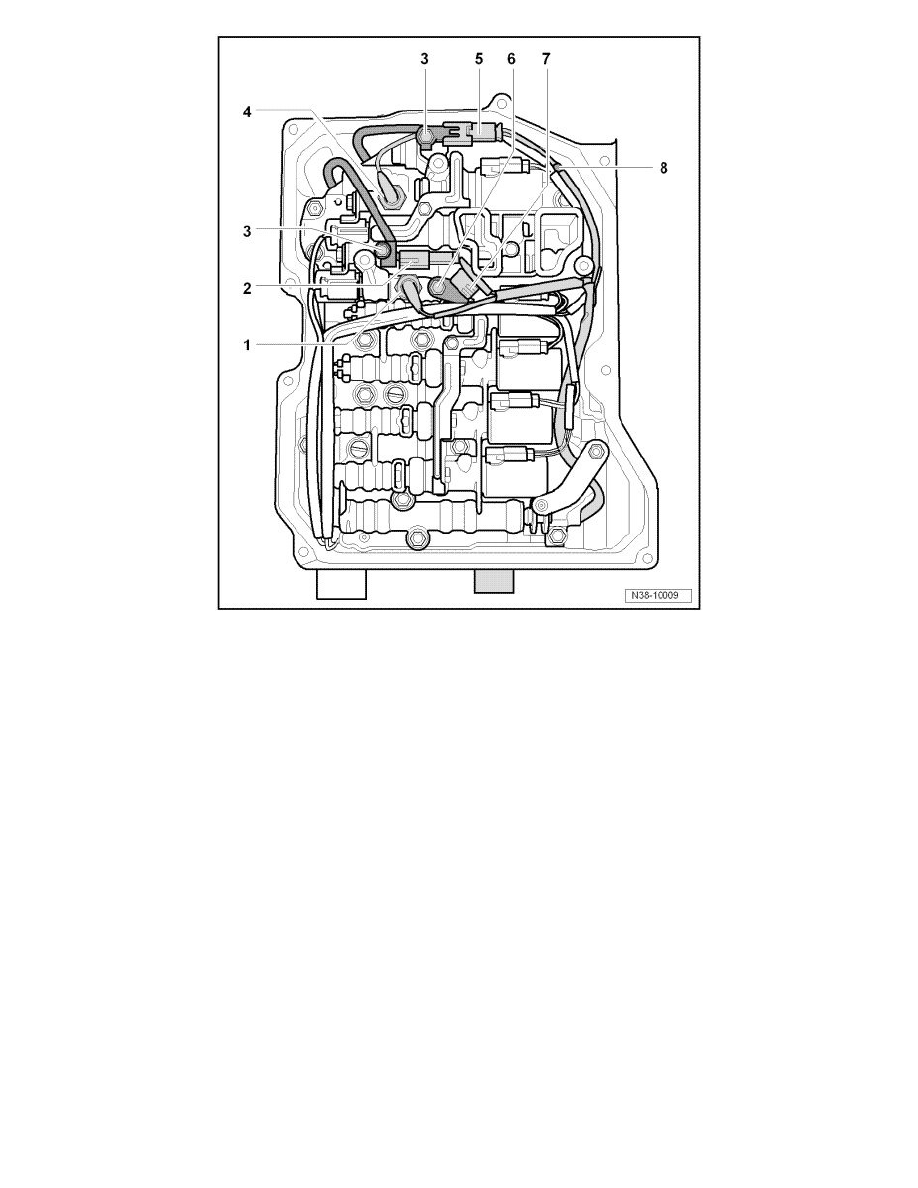

Separate connectors - 2 - and - 5 -.
-
Remove bracket bolts - 3 -.
-
If a connector is damaged, the wiring harness or Transmission Input Speed (RPM) Sensor (G182) or Transmission Output Speed (RPM) Sensor
(G195) must be replaced.
-
Remove bolt - 6 -.
-
For reinstallation, note bracket fastening on ATF temperature sensor (G93) - 7 -.
-
Carefully pull ATF temperature sensor (G93) - 7 - out of valve body together with bracket.
-
Detach wiring harness from bracket - 8 -.
-
Remove selector lever - 1 - from selector shaft.
