Jetta Sedan L4-1.9L DSL Turbo (BEW) (2005)

Page 1
background image

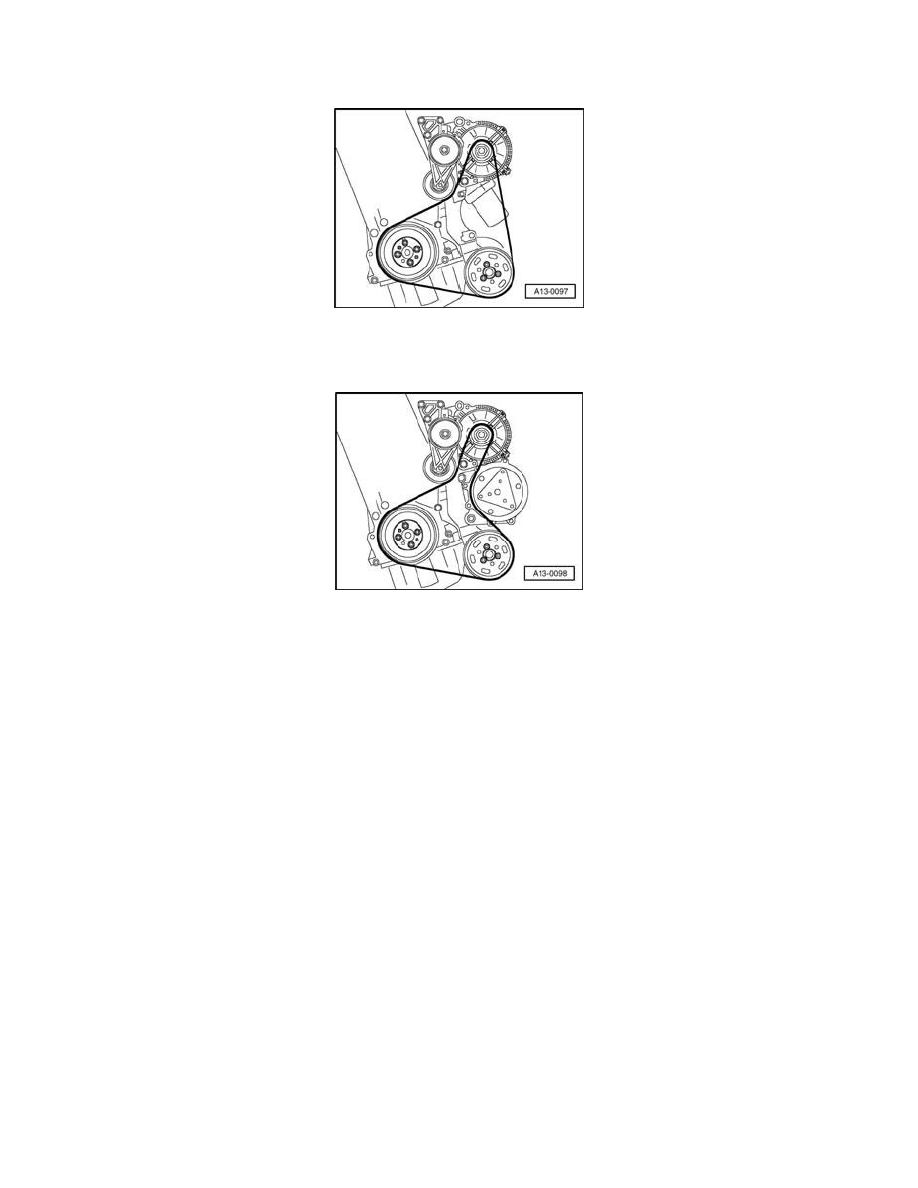

Drive Belt: Diagrams

Belt drive for vehicles without air conditioning

Belt drive for vehicles without air conditioning

Belt drive for vehicles with air conditioning

Belt drive for vehicles with air conditioning
