Assembly overview

Make

Volkswagen

Model

New Beetle

Section

Steering › Bottom-mounted vane pump › Assembly overview

Running gearAssembly overview

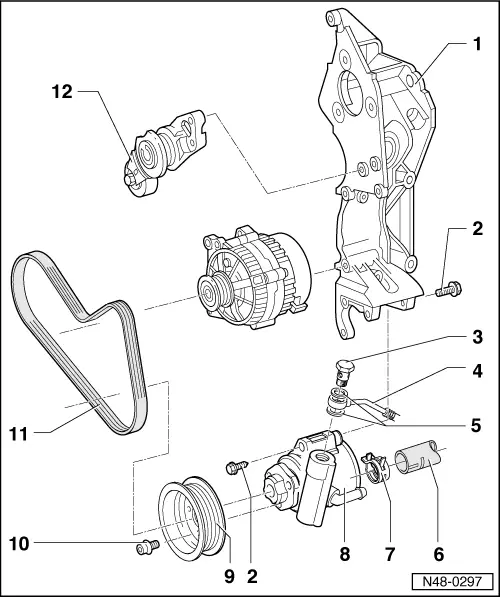

Assembly overview

1 -

Bracket

2 -	Hexagon bolt

q

M8 x 40

q	Torque setting → Anchor.

3 -	Banjo bolt

q

M16 x 1.5

q	Torque setting → Anchor.

4 -	Pressure line

5 -	Sealing rings

q

Renew.

6 -	Suction hose

7 -	Spring-type clip

8 -

Vane pump

q	Checking delivery pressure → Chapter

q	Fill with fluid before installing → Chapter

9 -	Belt pulley

10 -	Hexagon socket head bolt

q

M8 x 14

q	1.4 l engine: M8 x 12

q	Torque setting → Anchor.

11 -	Poly V-belt

q	Mark direction of rotation before removing

q	Allocation → Electronic parts catalogue “ETKA”

q	Removal and belt routing → Rep. Gr.13.

q	Checking condition → Booklet14.1

12 -	Tensioning element for ribbed belt
