New Beetle

Revised track rods
Revised track rods
The track rods have been shortened.

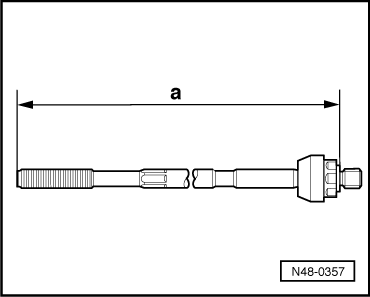

Dimensions of track rods
t  Previous track rod, -a- = 343.1 mm
t  New track rod, -a- = 318.9 mm
  Note
A mixed installation of the old and new version track rods is not permissible.
  N48-0357
