New Beetle

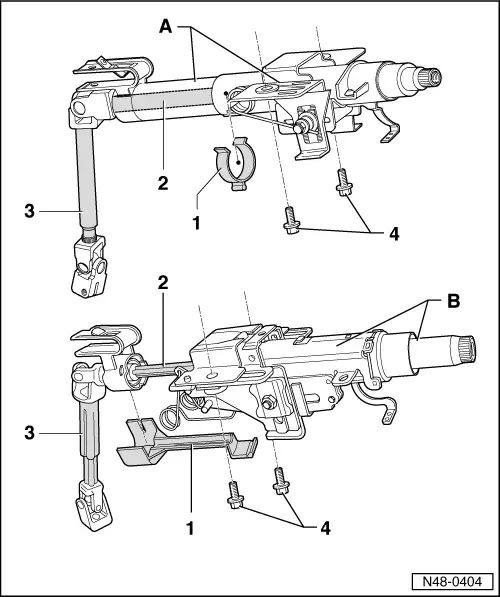

Steering column variations

Steering column variations

The steering column -A- from Nacam was installed up to ► 01.00.
The steering column -B- from Presta has been installed since 02.00 ►.
The height and reach adjustment functions for both steering columns is identical.
Both versions are supplied as spare parts.
When renewing steering column, only use parts from same manufacture.
Therefore, establish which version is installed in the vehicle before removing the steering column.
