New Beetle

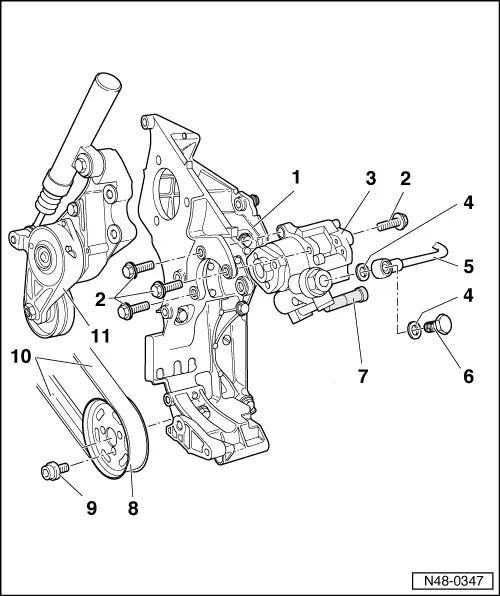

| Assembly overview |
| 1 - | Bracket |
| 2 - | Hexagon bolt |
| q | M8 x 40 |
| q | Torque setting → Anchor. |
| 3 - | Vane pump |
| q | Checking delivery pressure → Chapter |
| q | Fill with fluid before installing → Chapter |
| 4 - | Sealing rings |
| q | Renew. |
| 5 - | Pressure line |
| 6 - | Banjo bolt |
| q | M16 x 1.5 |
| q | Torque setting → Anchor. |
| 7 - | Suction hose |
| 8 - | Belt pulley |
| 9 - | Hexagon socket head bolt |
| q | M8 x 14 |
| q | Torque setting → Anchor. |
| 10 - | Poly V-belt |
| q | Mark direction of rotation before removing |
| q | Allocation → Electronic parts catalogue “ETKA” |
| q | Removal and belt routing → Rep. Gr.13. |
| q | Checking condition → Booklet14.1 |
| 11 - | Tensioning element for ribbed belt |
