Roll Bar: Locations

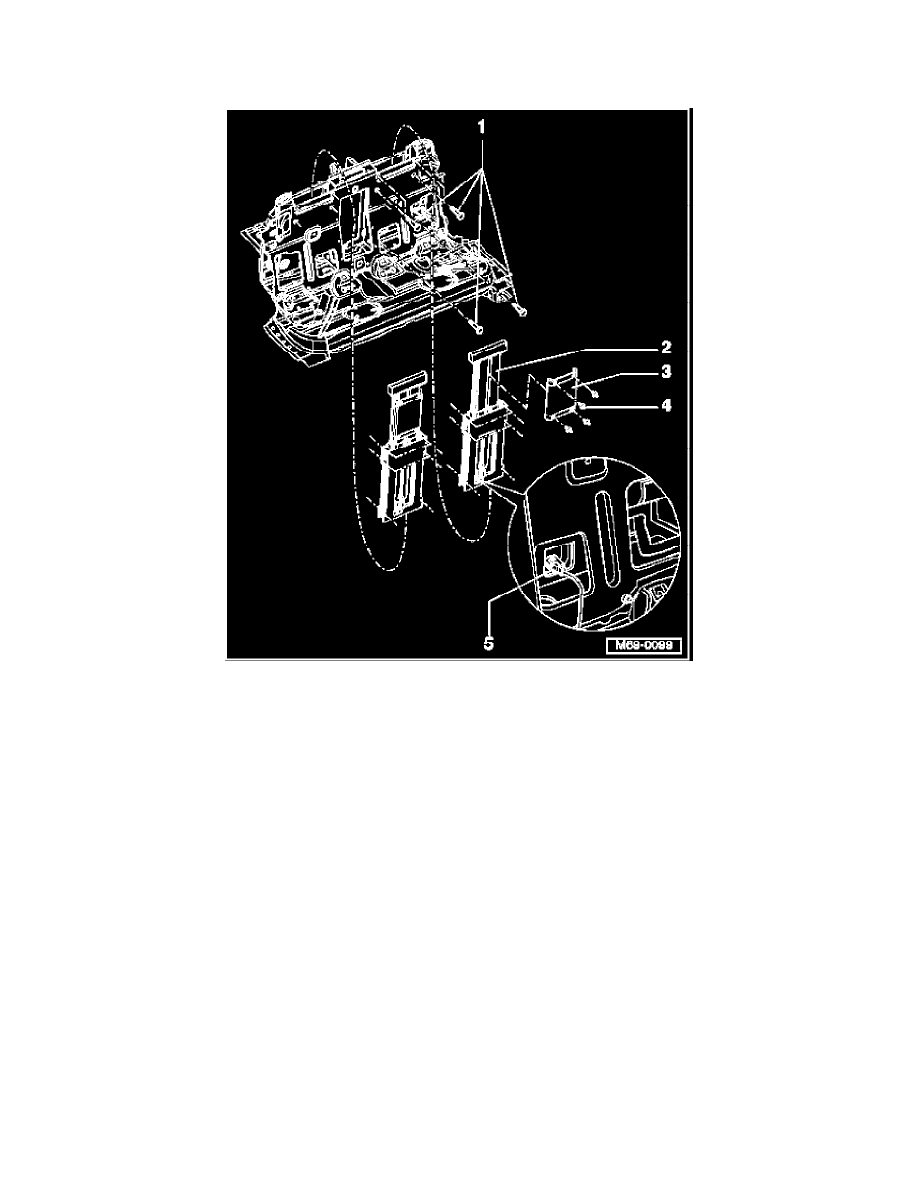

Automatic Rollover Supports(TM), Assembly Overview
1. Bolt/screw
-
29 Nm
2. Automatic Rollover Supports(TM)
-
Raised
3. Impact carrier
4. Spreader rivet
5. Connector
