Drive Belt: Diagrams

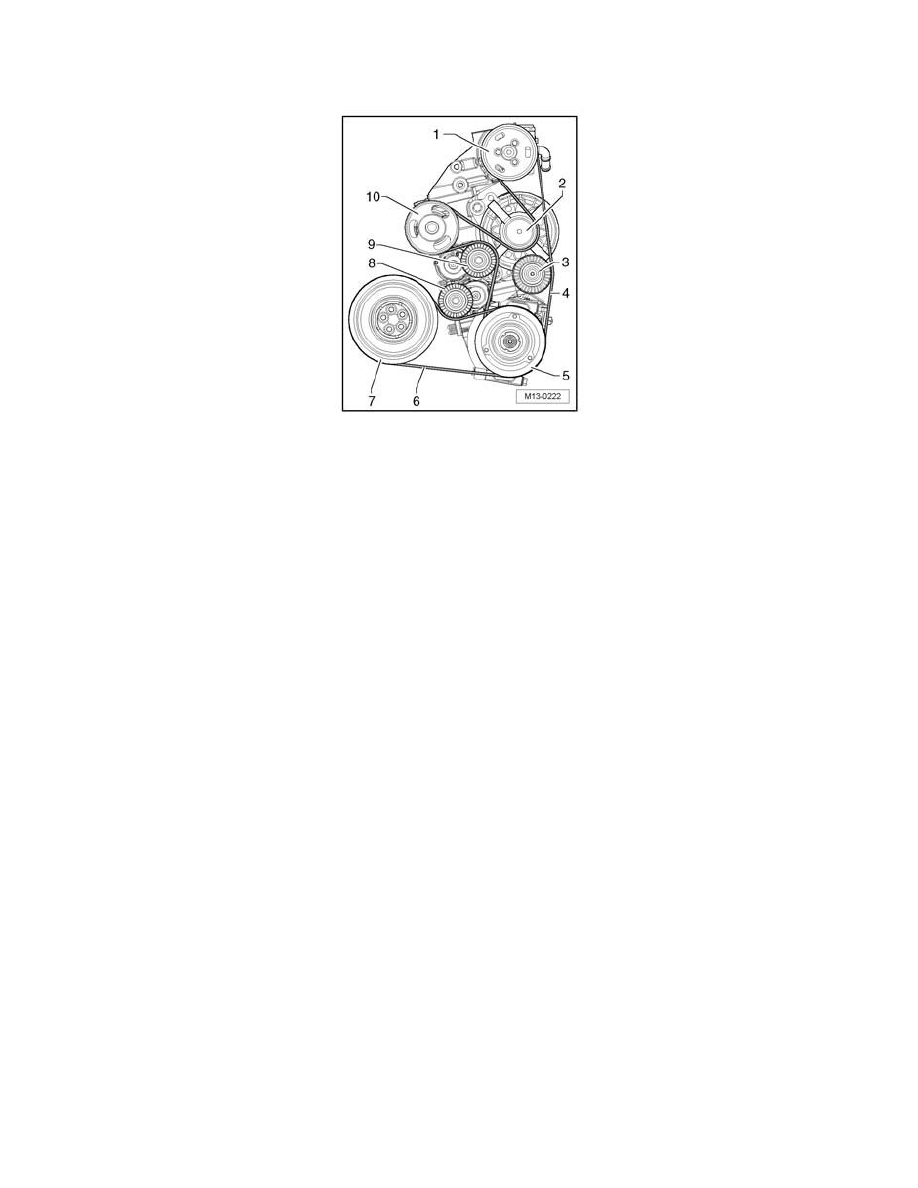

Ribbed belt routing
Ribbed belt routing
1. Power steering pump
2. Belt pulley - generator
3. Lower idler pulley
4. Ribbed belt for generator, vane pump and coolant pump
5. Belt pulley - air conditioning compressor
6. Ribbed belt for A/C compressor
7. Belt pulley - crankshaft
8. Tension roller for A/C compressor ribbed belt
9. Tensioning roller for ribbed belt for generator, vane pump and coolant pump
10. Belt pulley - coolant pump
