Coolant Line/Hose: Diagrams

Coolant Line/Hose: Diagrams

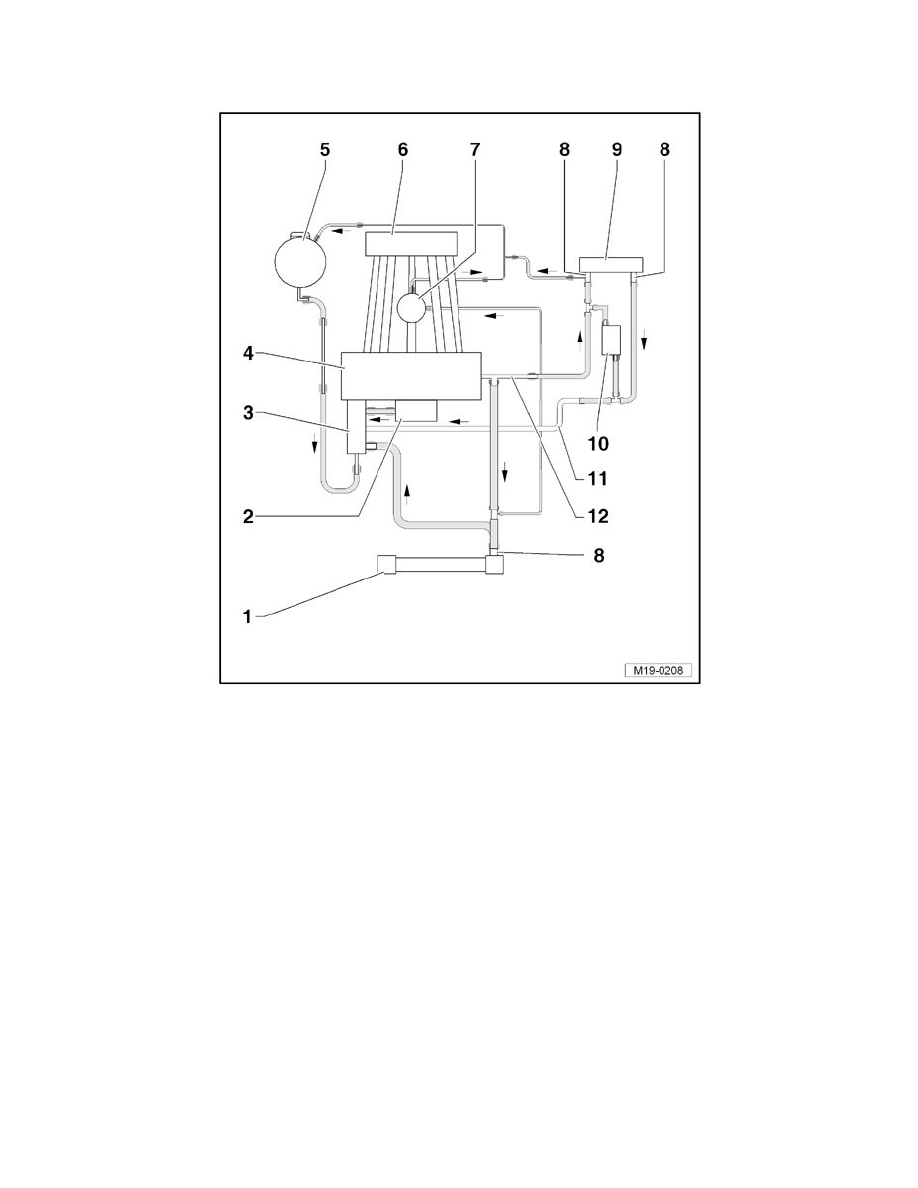

Coolant Hose Connection Diagram

1

Radiator

‹› Removal and installation, refer to => [ Radiator ] See: Engine, Cooling and Exhaust/Cooling System/Radiator/Service and Repair.

‹› Replace the coolant after replacing.

2

Oil Cooler

3

Coolant Pump and Coolant Thermostat

‹› Coolant pump removal and installation, refer to => [ Coolant Pump ] See: Engine, Cooling and Exhaust/Cooling System/Water Pump/Service

and Repair.

‹› Thermostat removal and installation, refer to => [ Coolant Thermostat ] See: Engine, Cooling and Exhaust/Cooling System/Thermostat/Service

and Repair.

‹› Checking coolant thermostat - item 16 - => [ Coolant Thermostat ] See: Engine, Cooling and Exhaust/Cooling System/Service and

Repair/Removal and Replacement/Cooling System Components, Engine Side.

4

Cylinder Head/Cylinder Block

‹› Replace the coolant after replacing.

5

Expansion Tank

‹› With the sealing cap
