Removing and installing front bumper
Removing and installing front bumper
  WARNING
The vehicle should not be driven without front bumper or bumper bracket (without it there is no guarantee that the subframe is secured correctly).

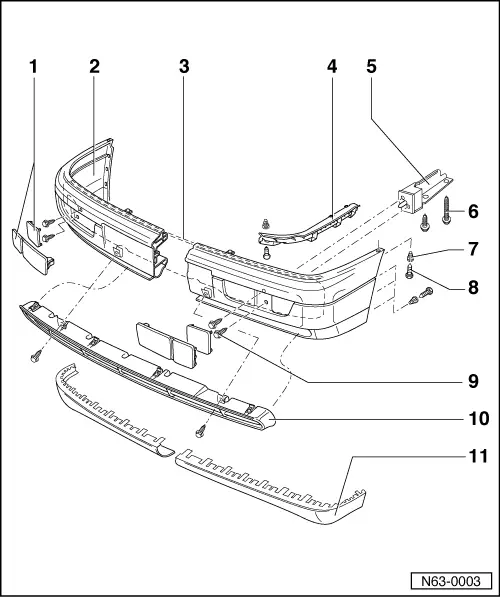

1 - Trim
2 - Cover
q   Unscrew bumper from longitudinal member → Chapter
3 - Carrier
4 - Guide
q   To remove/install bumper, pull out or push in parallel to guides at left and right.
5 - Bracket
6 - Hexagon head screws
q   82 Nm
7 - Spreader clip
8 - Combi bolt
q   Connects the cover with the wheel housing liner.
q   Qty. 4 per side
9 - Hexagon head screws
q   23 Nm
10 - Air intake grille
q   Removing → Chapter
11 - Spoiler
q   Clipped into cover.
