Passat (B3)

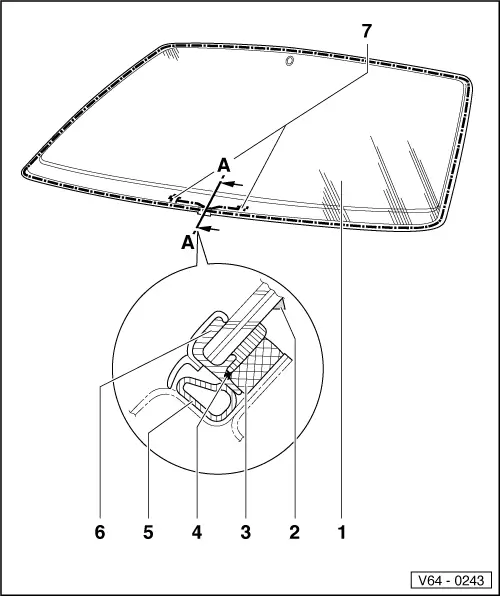

| Assembly overview - Windscreen |
| 1 - | Windscreen |
| q | Removing windscreen → Chapter |
| q | Installing windscreen → Chapter |
| 2 - | Seal |
| q | Self-adhesive |
| q | Bonding → Chapter |
| 3 - | PUR adhesive sealant |
| q | Cross section of bead: width = 7 mm, height = 11 mm (including precoating, residual material on window glass and window flange). |
| 4 - | Cutting cord |
| q | Inserted around circumference in surround |
| 5 - | Hose profile |
| 6 - | Window surround (one-piece) |
| q | Renewing → Chapter |
| 7 - | Cord end |
| q | 200 to 250 mm long |
