Passat (B3)

Preparing old undamaged rear window for glazing
Preparing old undamaged rear window for glazing
  Note

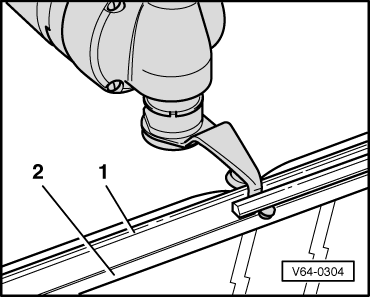

When reusing an undamaged window, cut back any residual adhesive sealant -1- just before bonding in using electric cutter and blade -V.A.G 1561/10- with stop roller at 1 - 2 mm. Do not damage precoating or lip with spacer strip -2-.

–  Do not damage spacer strip -1- or ceramic coating -2-.
  WARNING
Do not prime adhesion surface, do not activate and do not treat with cleaning solution. Keep adhesion surface free of dirt and grease.
Exception: if bonding is not performed immediately after cutting back, the remaining residual material must be activated with activator -D 181 801 A1-.
  V64-0304
