Materials > < Flush bonded windows

Passat (B3)

Tools

Tools
Special tools and workshop equipment required

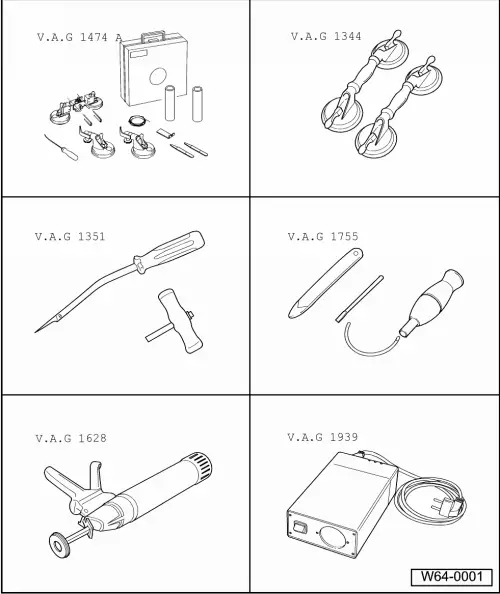

t  Removal kit for flush bonded windows -V.A.G 1474 A-
t  Suction lifter -V.A.G 1344-
t  Cutting tool -V.A.G 1351-
t  Windscreen removal kit -V.A.G 1755-
t  Hand-cartridge gun -V.A.G 1628-
t  Cartridge heater -V.A.G 1939-

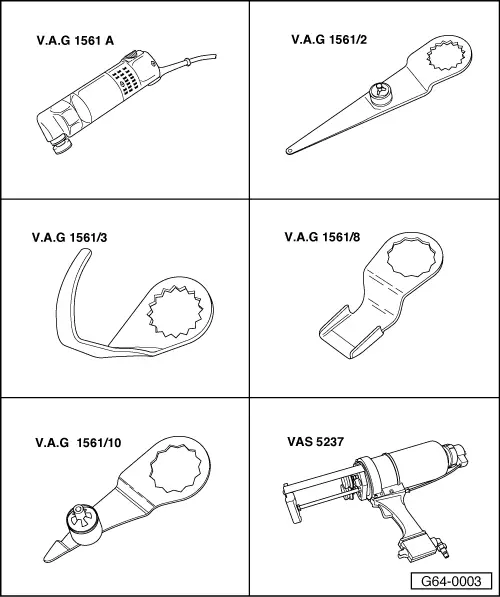

t  Electric cutter -V.A.G 1561 A-
t  Cutting blade -V.A.G 1561/2-
t  Cutting blade -V.A.G 1561/3-
t  Cutting blade -V.A.G 1561/8-
t  Cutting blade -V.A.G 1561/10-
t  Double cartridge gun -VAS 5237-

Only precoated windows are supplied for repairs
Precoated windows: precoating, i.e. PUR sealant, which is applied to window and window edge during manufacture. Precoating of window must no longer be primed and treated with cleaning solution. Before applying 2-pack adhesive, precoating must be activated with activator D 181 801 A1.
  WARNING
Activator must not come into contact with paintwork, otherwise finish will be damaged.


Materials > < Flush bonded windows
