Passat (B3)

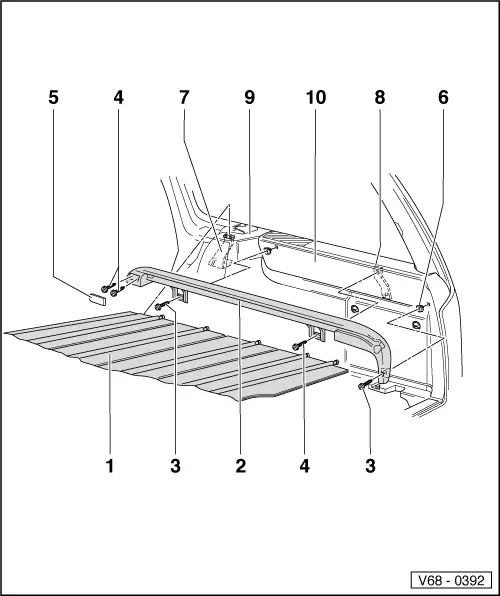

| Luggage compartment cover |
| 1 - | Cover sheet |
| q | With Velcro strip, cover can be attached to fleece of backrest |
| 2 - | Guide rail |
| 3 - | Self-tapping screw |
| 4 - | Countersunk screw |
| 5 - | Cap |
| 6 - | Spring clip |
| 7 - | Retaining bracket |
| q | To remove and install, inertia reel cover and front luggage compartment trim must be removed → Chapter |
| 8 - | Securing bracket |
| q | To remove and install, rear luggage compartment trim must be removed → Chapter |
| 9 - | Inertia reel cover |
| q | Removing → Chapter |
| 10 - | Rear luggage compartment trim |
| q | Removing → Chapter |
