Passat (B3)

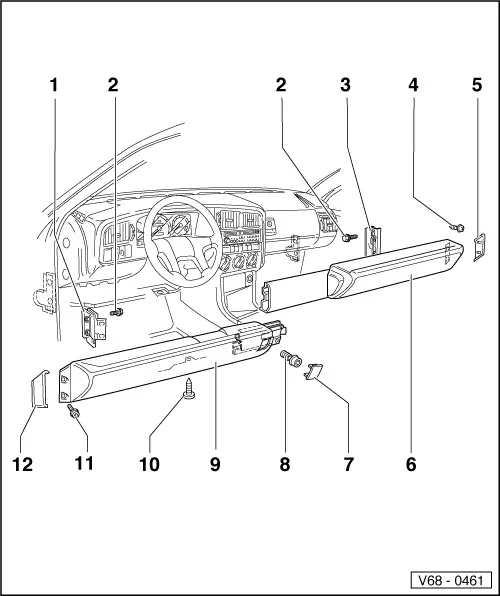

| Removing knee pad |
| 1 - | Retainer, left |
| q | To remove, A-pillar trim must first be removed. |
| q | Pull out retainer downwards from A-pillar |
| 2 - | Hexagon head bolt |
| q | 10 Nm |
| q | When installing, first tighten lower and then upper bolt |
| 3 - | Retainer, right |
| q | Remove as per left retainer |
| 4 - | Combi bolt |
| q | 10 Nm |
| 5 - | Trim |
| q | Unclip at an angle of 90 degrees |
| 6 - | Knee pad, right |
| q | To remove, left knee pad and lower A-pillar trim must first be removed |
| q | Pull out knee pad from behind centre console |
| 7 - | Cap |
| q | Lever out |
| 8 - | Combi bolt |
| q | 10 Nm |
| 9 - | Knee pad, left |
| q | To remove, lower A-pillar trim must first be removed |
| q | Pull left knee pad outwards from knee pad |
Note| When installing knee pad, ensure routing of electrical wiring is correct in area of ignition lock and steering column. |
| 10 - | Self-tapping screw |
| 11 - | Combi bolt |
| q | 10 Nm |
| 12 - | Trim |
| q | Unclip at an angle of 90 degrees |
