Automatic gearbox 01M from January 1995
Identification of gearbox
Identification of gearbox

N37-0180

The "4-speed automatic gearbox 01M" is installed in the Passat 1994 ▸ in combination with a 4- or 6-cylinder engine. Allocation .

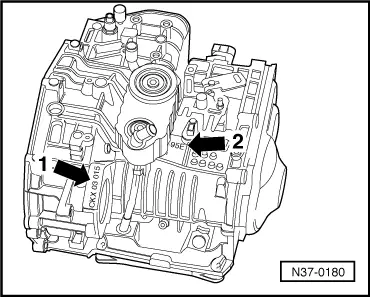

Location on gearbox

→ Code letters (arrow 1)

Automatic gearbox 01M (arrow 2)


N37-0179

→ Automatic gearbox 01M (arrow 2)


N37-0178

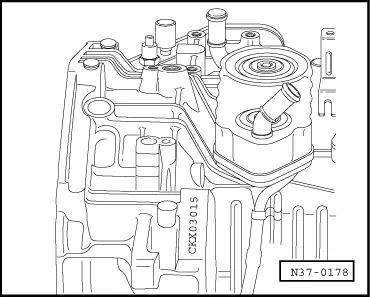

Example:

CKX

03

01

5

I

I

I

I

Code letters

Day

Month

Year (1995)
of manufacture

The code letters of the gearbox are also given on the vehicle data plates.
