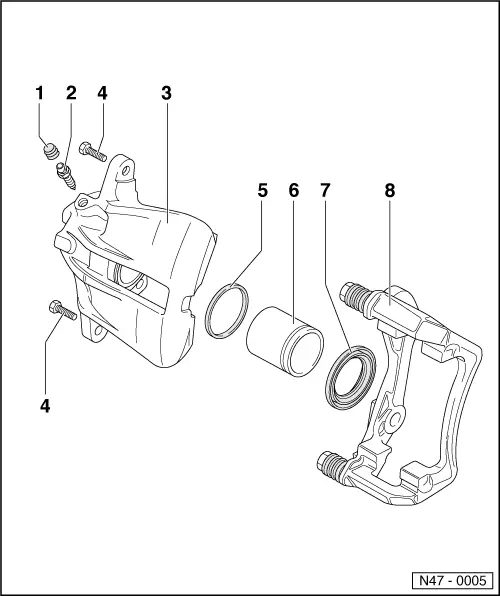

| Repairing Girling front brake calipers |
Note| t | When carrying out repairs install all parts supplied in repair kit. |
| t | Apply thin coat of brake cylinder paste to brake cylinder, piston and seal. |
| 1 - | Dust cap |
| 2 - | Bleed valve |
| q | Apply thin coat of brake cylinder paste to threads before screwing in. |
| 3 - | Brake caliper housing |
| 4 - | Self-locking hexagon bolt, 35 Nm |
| q | Renew. |
| q | When loosening and tightening, counterhold on guide pin. |
| 5 - | Sealing ring |
| q | Remove using a screwdriver → Anchor. |
| 6 - | Piston |
| q | Removing and installing → Anchor. |
| q | First coat the piston lightly with brake cylinder paste. |
| 7 - | Protective cap |
| q | Do not damage when inserting piston. |
| 8 - | Brake carrier with guide pins and protective caps |
| q | Brake carrier with guide pins and protective caps |
| q | Replacement carriers are supplied assembled and with sufficient grease on guide pins. |
| q | If protective caps or guide pins are damaged, renew using repair kit. Use grease sachet supplied to lubricate guide pins. |
