Passat (B3)
Note
|

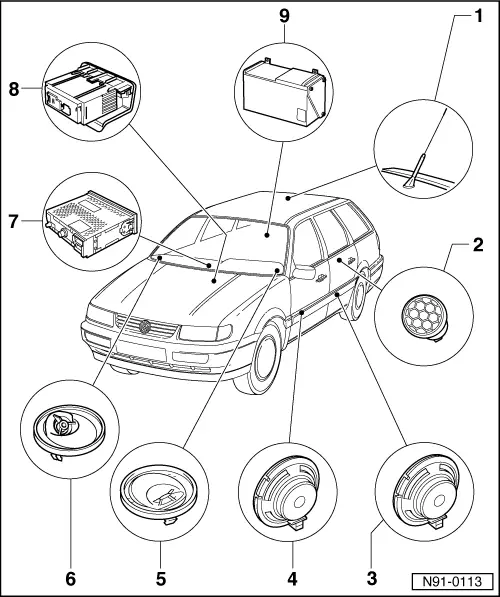

| 1 - | Roof aerial -R11- |
| q | Removing and installing → Chapter |
| 2 - | Rear left treble loudspeaker -R14- |
| q | Domed treble speakers |
| q | Rear right treble loudspeaker -R16- is identical in design |
| q | Installed by the rear door handle |
| q | Removing and installing → Chapter |
| 3 - | Rear left bass loudspeaker -R15- |
| q | Rear right bass loudspeaker -R17- is identical in design |
| q | Diameter 168 mm. |
| q | Removing and installing → Chapter |
| 4 - | Front left bass loudspeaker -R21- |
| q | Front right bass loudspeaker -R23- is identical in design |
| q | Diameter 168 mm. |
| q | Removing and installing → Chapter |
| 5 - | Front left treble loudspeaker -R20-. |
| q | Installed in dash panel |
| q | Domed treble loudspeaker on a base plate with 100 mm diameter |
| q | Removing and installing → Chapter |
| 6 - | Front right treble loudspeaker -R22-. |
| q | Installed in dash panel |
| q | Domed treble loudspeaker on a base plate with 100 mm diameter |
| q | Removing and installing → Chapter |
| 7 - | Radio unit -R- |
| q | Installed in dash panel |
| q | Removing and installing → Chapter |
| q | Securing aerial cable → Chapter |
| 8 - | Cassette storage box |
| q | Fitted in centre console |
| q | Removing and installing → Chapter |
| q | Removing and installing bulb for illumination → Chapter |
| 9 - | CD changer -R41- |
| q | Location in Variant and saloon → Chapter |
