Removing headlight bulbs

Note

Do not touch bulb glass when installing a new bulb.

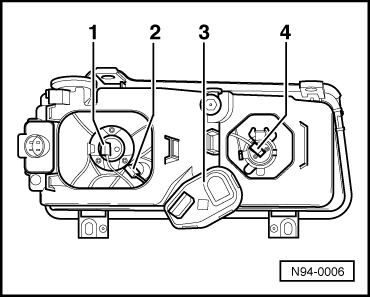

1 -	Bulb for dipped beam 12 V, 55 W

2 -	Bulb for side light: 12 V, 5 W

3 -	Headlight range control motor

4 -	Bulb for main beam 12 V, 55 W

The wire clips must be disengaged before the bulbs -1- and -4- can be removed.
