Passat (B3)

Removing and installing starter
Removing and installing starter
  Note
Removing and installing bush for starter → Rep.Gr. 34
Removing:
–  Disconnect earth strap at battery.

–  Support engine and gearbox with 10-222A and legs 10-222A/1
  V27-0599
–  Before loosening cables (starter connections), remove black plastic cap and connections -arrow- from solenoid switch.

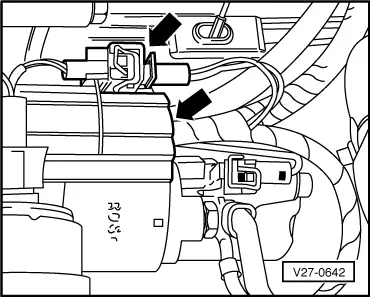

  V27-0642
–  Release terminal 50 connector housing -arrow- and pull off connector.
–  Detach wire from solenoid switch terminal 30 -arrow-. When installing, tighten nut to 13 Nm.
  V27-0660
–  Tighten M8 nut -arrow- on stud to 10 Nm.
  V27-0661
