Passat (B3)

Adjusting washer spray jets

Adjusting washer spray jets
–  Use special tool 3019 A if necessary.

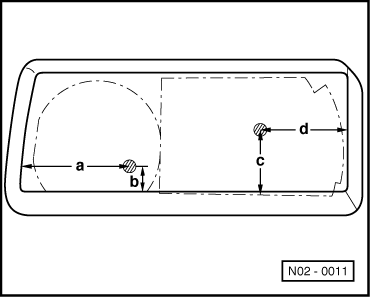

Left headlight:
a -  -110 mm
b -  -25 mm
c -  -60 mm
d -  -85 mm
Jet dimensions for the right headlight are a mirror image.
  N02-0011
