Cruise Control Servo: Adjustments

Make

Volkswagen

Model

Passat

Engine

L4-1.8L Turbo (AWM)

Year

2004

Section

Cruise Control Servo › Adjustments

Cruise ControlAdjustments · page 1 of 2

Cruise Control Servo: Adjustments

Vacuum Servo Rod, Adjusting

4 Cylinder engine

-

Start engine and run at idle (throttle housing in idling speed position)

-

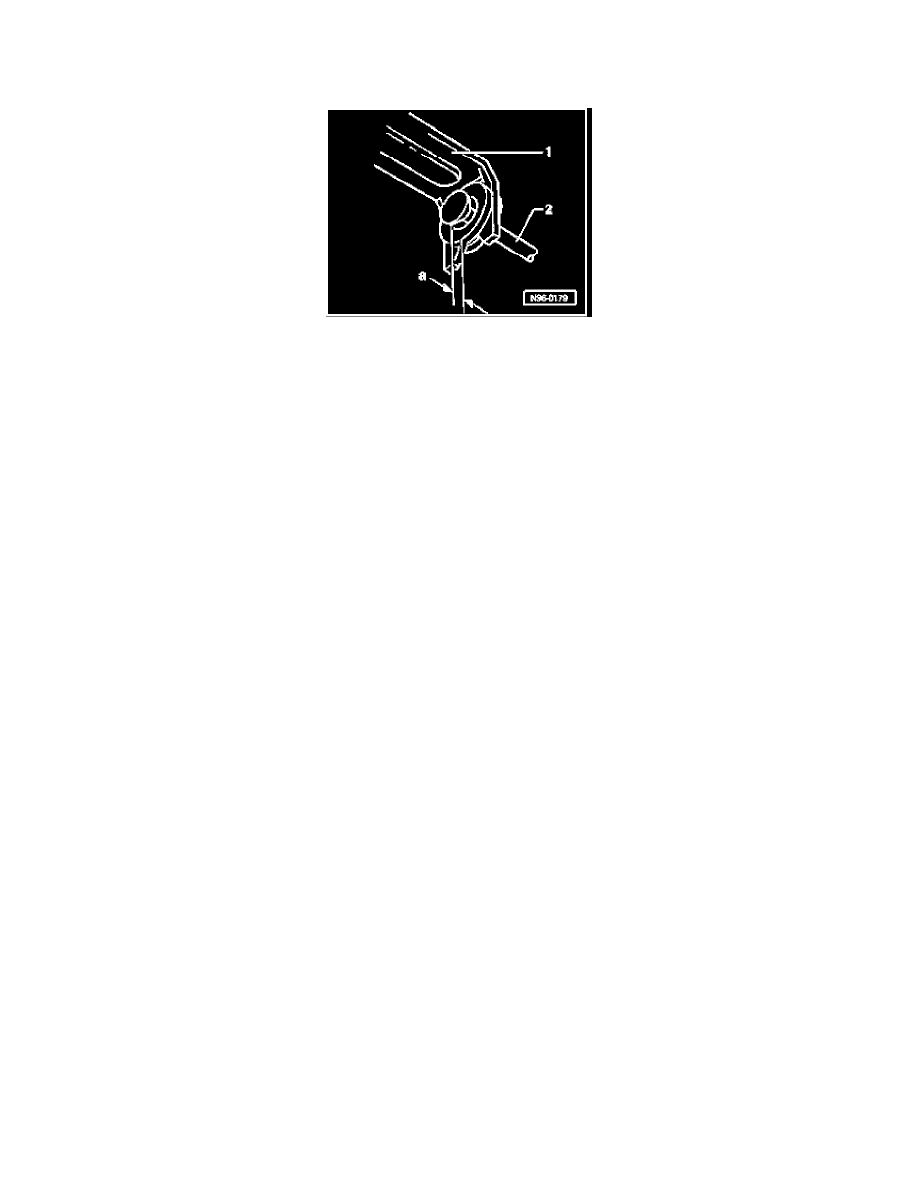

Turn rod -2- in onto stop and then turn back one turn (360 degrees ± 90 degrees).
Play -a- between rod -2- and vacuum servo linkage -1- must be between 0.5 mm and 1.0 mm (0.019 inch and 0.03 inch)

-

Secure servo linkage to keep from turning.
