Passat L4-1.8L Turbo (AWM) (2004)
/Page-574001.png)
Alignment: Testing and Inspection
Vehicle Alignment
Vehicle alignment
General
Note:
-
Vehicle alignment should not be checked before the vehicle has completed 1000 to 2000 km (600 to 1200 miles) as the coil springs have had time
to settle.
-
The cause of vehicle imbalance may also be excessive residual wheel imbalance and/or vertical wheel runout
-
When making adjustments the relevant specifications are to be adhered to as close as possible.
-
The vehicle alignment should be measured using VW/AUDI approved wheel alignment equipment!
-
When measuring, the front and rear axles must be measured every time.
-
Otherwise the proper running characteristics of the vehicle cannot be ensured!
Steering wheel and steering column are marked.
These positions must not be changed!

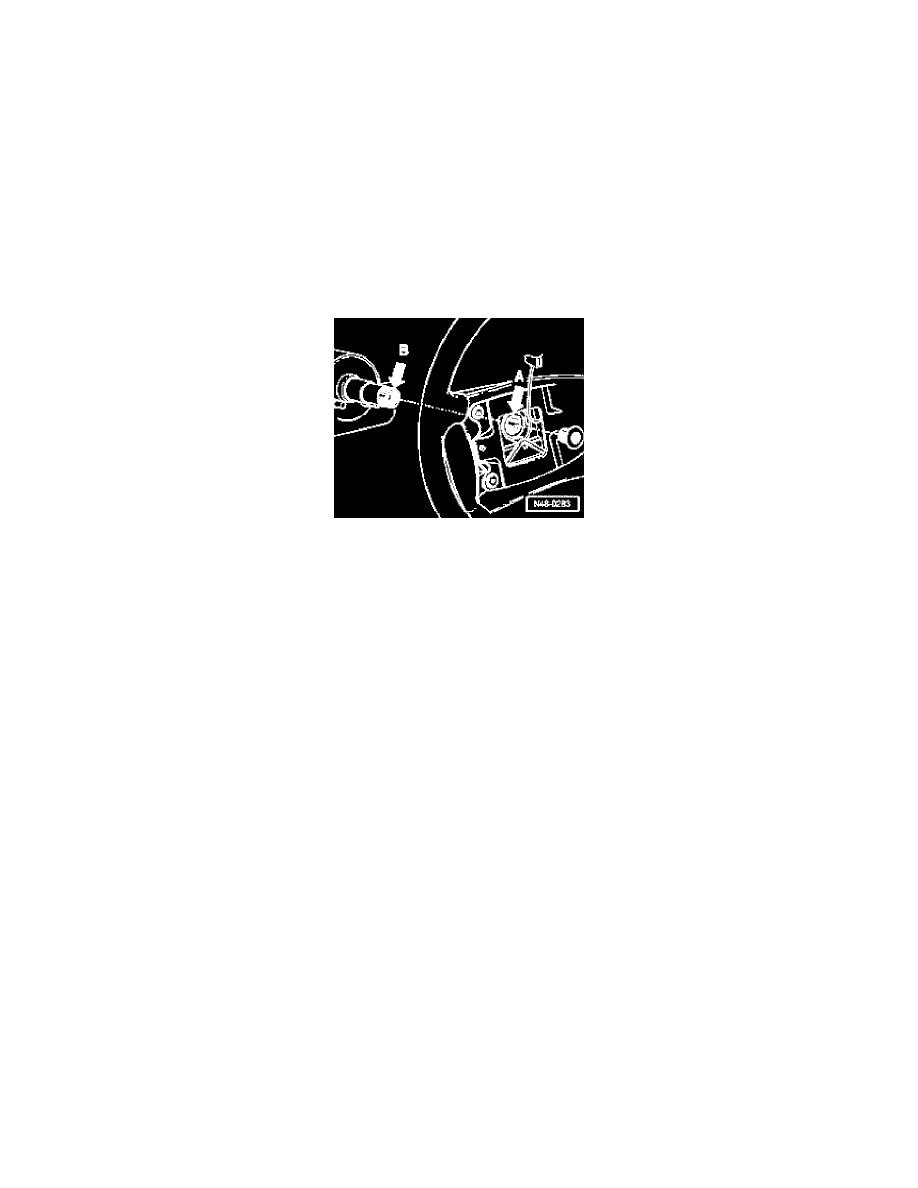

A - Line on steering wheel
B - Punch mark on steering column
Only then the center position on the rack can be guaranteed!
Vehicles with electronic stabilization program
CAUTION: If the steering wheel is moved on these vehicles, the basic setting for the steering angle sensor must be checked!
-
Perform basic setting in "guided fault finding" using VAS 5051.
Note: Start "guided fault finding" by pressing the "Go to" button in "Select function/component".
Wheel alignment must be checked if:
-
Not handling properly.
-
Involved in an accident.
-
Axle components have been removed.
-
Tires wear on one side.
