Drive Belt: Diagrams
- Make
- Volkswagen
- Model
- Passat
- Engine
- L4-1.8L Turbo (AWM)
- Year
- 2004
- Section
- Drive Belt › Diagrams
MaintenanceDiagrams · page 1 of 2
/Page-615001.png)
Drive Belt: Diagrams

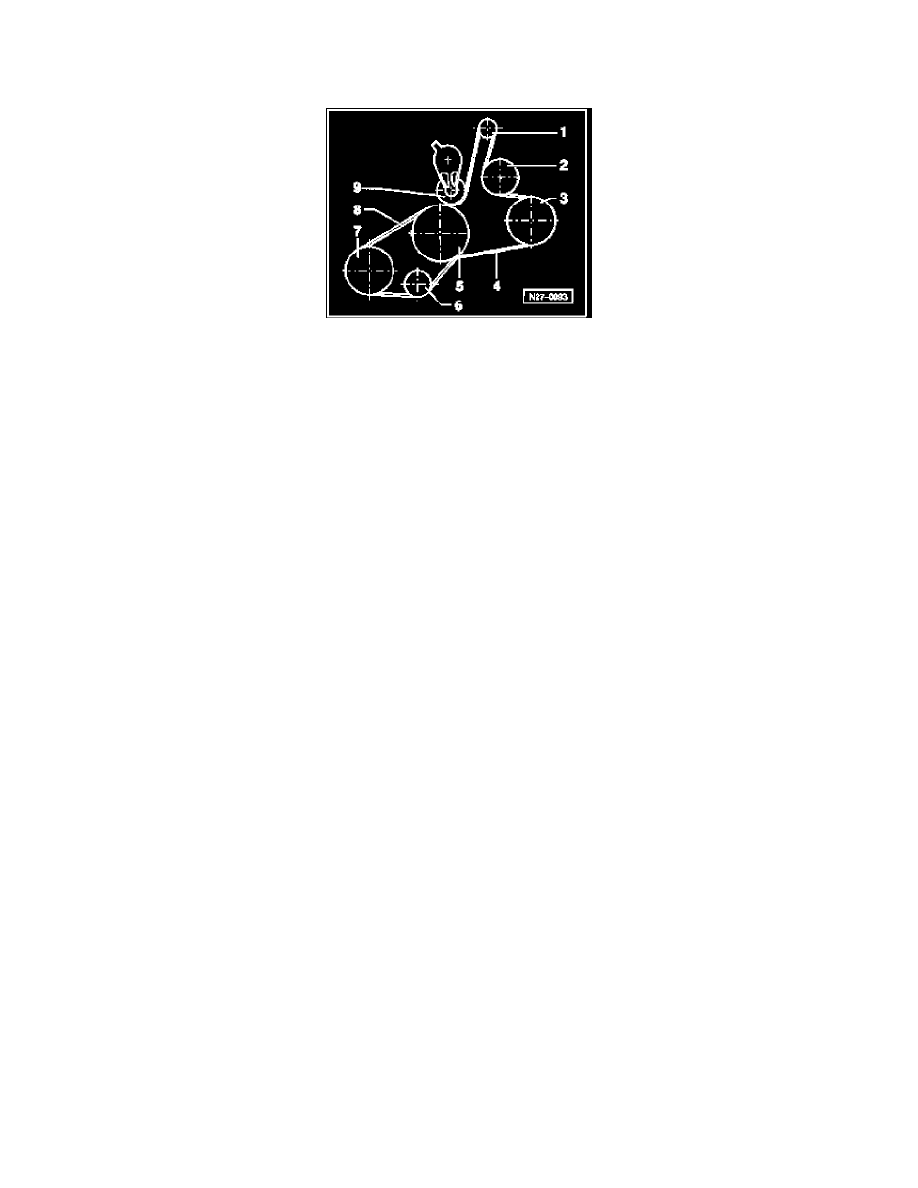

Ribbed Belt, Routing Diagrams
1. Pulley - Generator (GEN)
2. Pulley - viscous coolant fan
3. Pulley - power steering pump
4. Ribbed belt - generator, viscous coolant fan, power steering pump, crankshaft and tensioning roller
5. Pulley - crankshaft
6. Tensioning roller
7. Pulley - a/c compressor
8. Ribbed belt - crankshaft, tensioning roller and a/c compressor
9. Tensioning roller
