Grille: Service and Repair

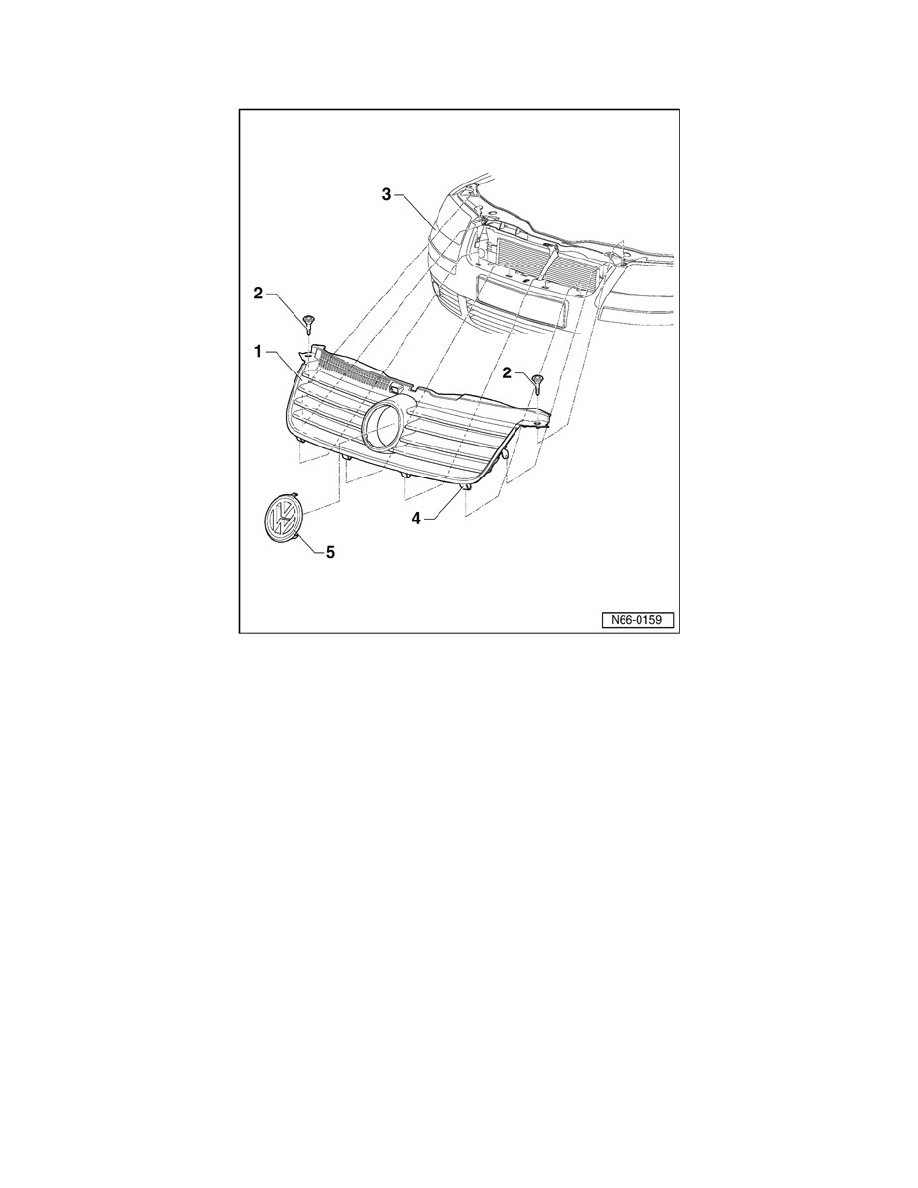

Radiator Grille, Assembly Overview 10.00 -->

1

-

Radiator grille
-

Material-ASA

-

Removing
-

Remove bolts - 2 -. Remove radiator grille - 1 - upward out of catches - 4 - of cover - 3 -.

-

Removing release lever.

-

Installing.
-

Align radiator grille - 1 -, clip in and bolt firmly.

2

-

Bolt
-

Qty 2

3

-

Cover

4

-

Catches
-

Qty 6

5

-

VW emblem
-

Clipped into radiator grille - 1 -.
