Wiper Arm: Locations

Make

Volkswagen

Model

Passat

Engine

V6-2.8L (ATQ)

Year

2004

Section

Wiper Arm › Locations

Wiper and Washer SystemsLocations

Wiper Arm: Locations

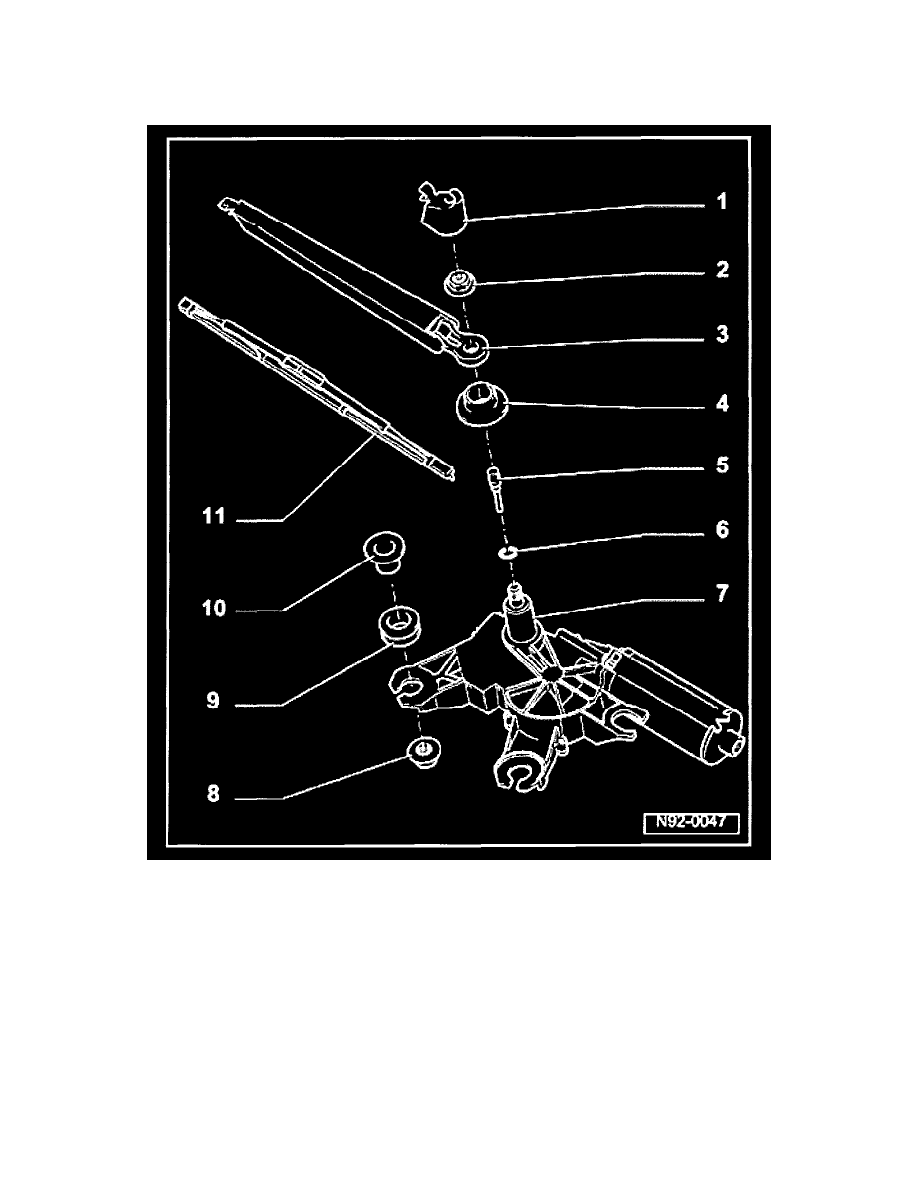

Rear Window Wiper, Assembly

1

-

Cap

2

-

Hex nut M 13
-

15 Nm (11 ft lb)

3

-

Wiper arm
-

Adjusting park position

4

-

Seal

5

-

Spray jet

6

-

Seal

7

-

Wiper motor

8

-

Hex nut M 6
-

8 Nm (71 in lb)

9

-

Grommet

10

-

Spacer

11

-

Wiper blade
-

Wiper rubber, removing and installing
