Coolant Line/Hose: Diagrams

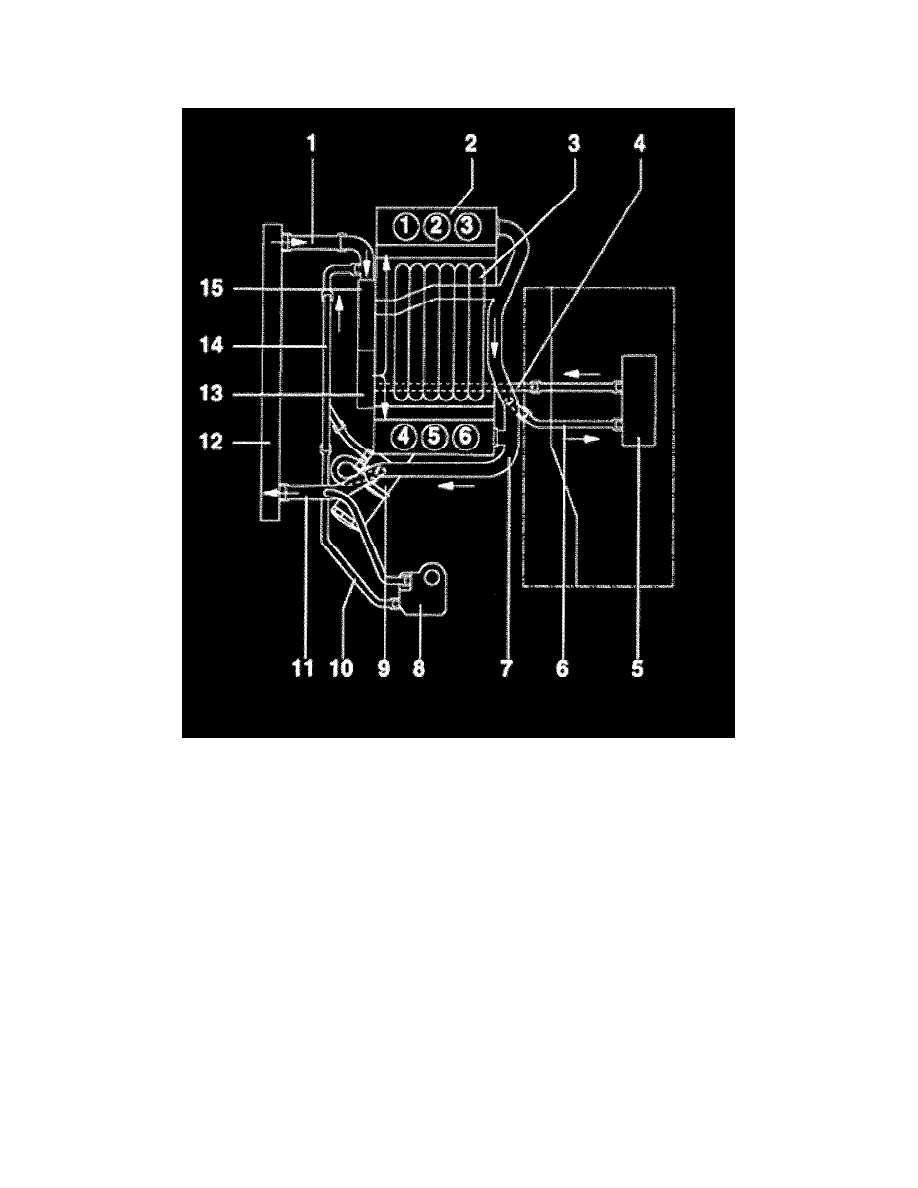

Coolant hose connection diagram

1. Lower coolant hose
2. Cylinder - head/cylinder block
3. Intake manifold
4. Coolant hose

-

From heat exchanger to engine block

5. Heating system heat exchanger
6. Coolant hose
7. Rear coolant hose
8. Expansion tank
9. Oil cooler

10. Coolant hose

-

From expansion tank to lower coolant hose

11. Upper coolant hose
12. Cooler
13. Coolant pump
14. Lower coolant hose
15. Connection

-

For thermostat
