Drive Belt: Diagrams

Make

Volkswagen

Model

Passat GLS Wagon

Engine

L4-1.8L Turbo (AWM)

Year

2002

Section

Drive Belt › Diagrams

MaintenanceDiagrams · page 1 of 2

Drive Belt: Diagrams

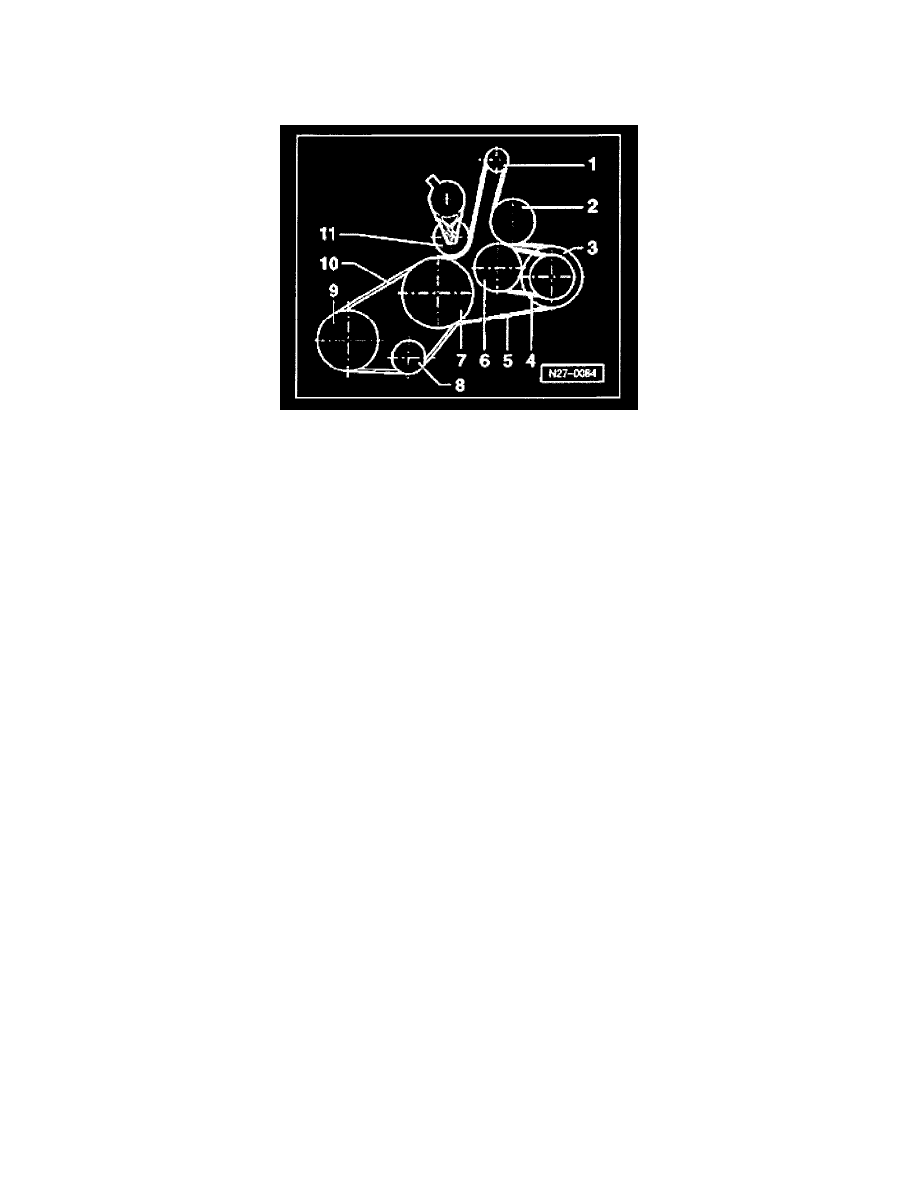

Ribbed Belt, Routing

1

-

Pulley - generator

2

-

Pulley - viscous coolant fan

3

-

Pulley - power steering pump

4

-

V-belt - power steering pump and coolant pump

5

-

Ribbed belt - generator, viscous coolant fan, power steering pump, crankshaft and tensioning roller

6

-

Pulley - coolant pump

7

-

Pulley - crankshaft

8

-

Tensioning roller

9

-

Pulley - A/C compressor

10

-

Ribbed belt - crankshaft, tensioning roller and A/C compressor

11

-

Tensioning roller
