Timing Component Alignment Marks: Locations

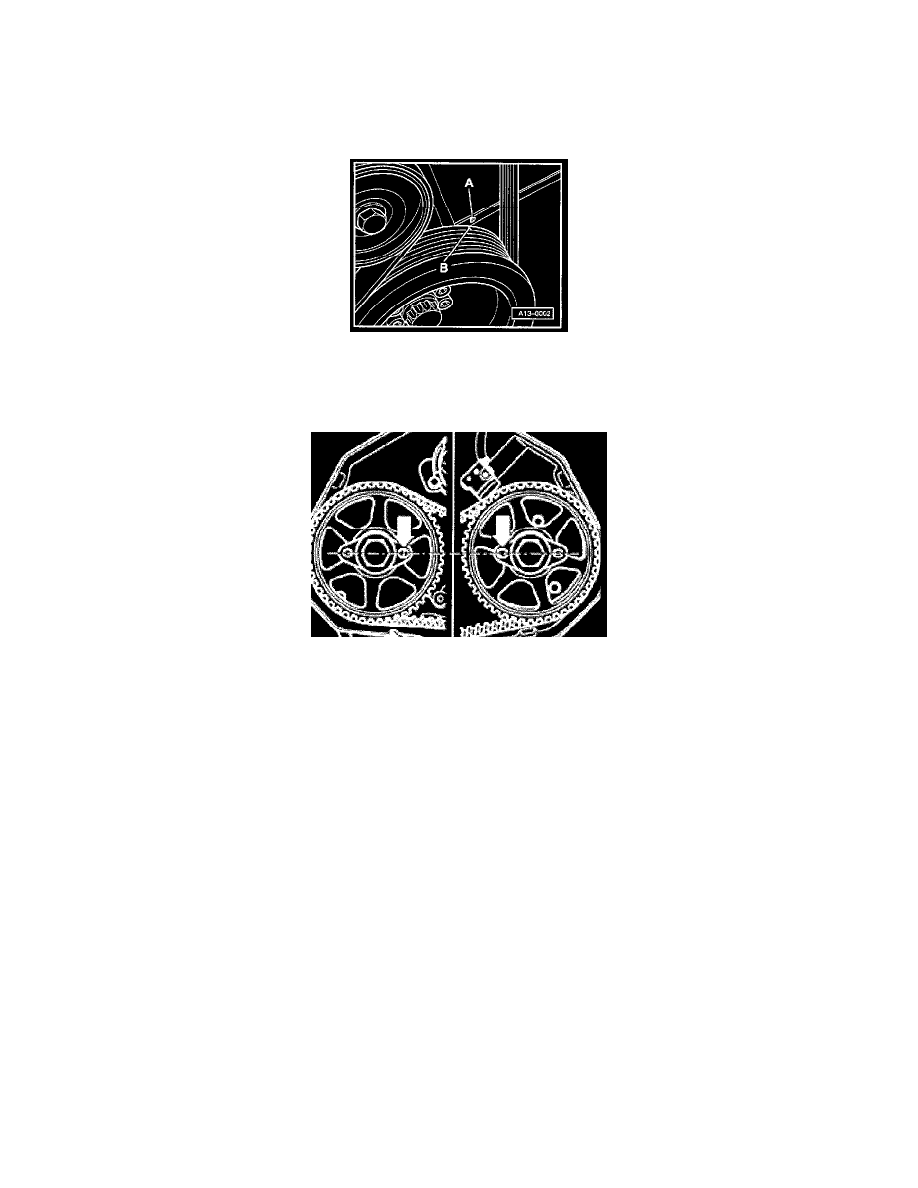

TIMING MARKS


Crankshaft

The mark on the toothed belt guard -A- must align with the notch on the ribbed belt pulley -B-.



Camshaft

The larger holes in the securing plate (arrows) must align opposite one another on the inside.

Note:  If the larger holes are positioned to the outside, the crankshaft must be turned one revolution further.

For Timing Belt replacement and Camshaft positioning refer to  "Timing Belt : Service and Repair : Procedures"  See: Timing Belt/Service and
Repair/Procedures
