Drive Belt: Specifications

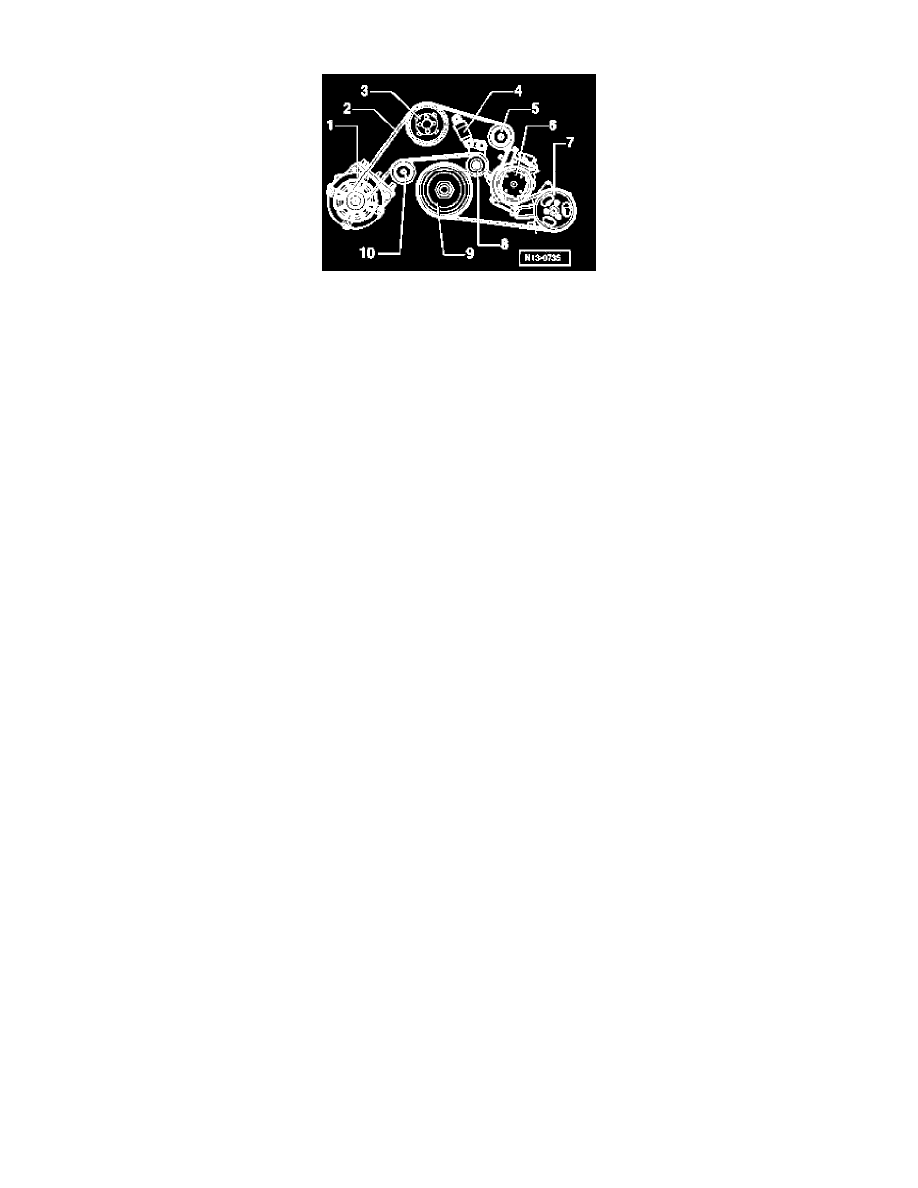

Ribbed belt routing
1. Alternator
2. Ribbed belt
3. Coolant pump
4. Tensioning element
5. Idler roller
6. Air conditioning compressor
7. Power steering pump
8. Tensioning roller
9. Vibration damper
10. Idler roller
^
Check headlight adjustment and adjust if necessary.
