Automatic gearbox 001
Renewing oil seals for flanged shafts
Renewing oil seals for flanged shafts

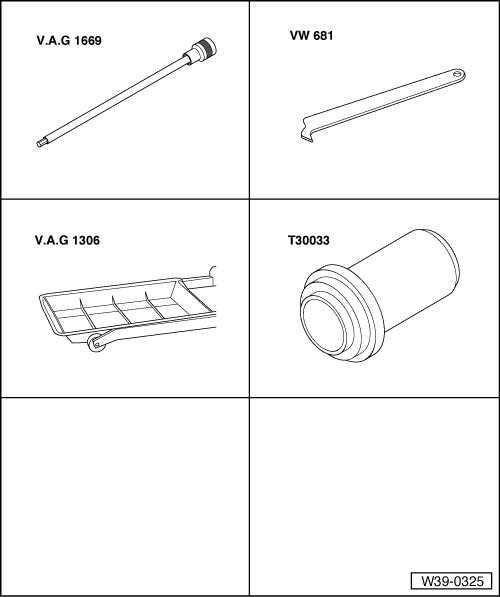

W39-0325

(Gearbox in vehicle)

Special tools and workshop equipment required

  • ◆ V.A.G 1669 6 mm A/F key
  • ◆ VW 681 Oil seal extractor
  • ◆ V.A.G 1306 Drip tray
  • ◆ Sealant D176 404 A2
  • ‒ Remove drive shaft far enough to gain access to flange shaft and shaft can be removed.

=> Running gear; Repair group 40; Removing and installing drive shaft.

  • ‒ Place drip tray under the gearbox.
