Polo Mk4

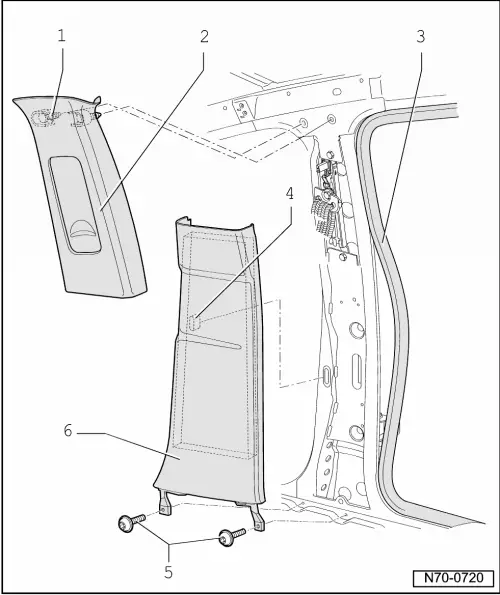

B-pillar lining - assembly overview

B-pillar lining - assembly overview
1 - Clip
2 - Column B upper lining
q   Remove and install → Chapter.
3 - Internal door packing
4 - Clip
5 - Screw
6 - Lower lining of column B
q   Remove and install → Chapter.
