Polo Mk4
|
| 1 - | Polyurethane-based sealing adhesive cord |
| 2 - | Close the 6 holes with polyurethane base sealing adhesive |
| 3 - | Paste cord for body repairs |
| 4 - | Area free of paste application |
| 5 - | Polyurethane-based sealing adhesive cord (smooth with a brush) |
| 1 - | Polyurethane-based sealing adhesive cord (smooth with a brush) |
| 2 - | Paste cord for body repairs (smooth with a brush) |
| 1 - | Paste cord for body repairs (smooth with a brush) |
| 1 - | Paste cord for body repairs (smooth with a brush) |
| 1 - | Polyurethane-based sealing adhesive cord (smooth with a brush) |
| 2 - | The fastening pins must be free of paste and/or wax |
| 3 - | PVC self-adhesive tape |
| 1 - | Paste cord for body repairs (smooth with a brush) |
| 2 - | Body repair paste |
| 1 - | Paste cord for body repairs (smooth with a brush) 2-door models |
| 2 - | Paste cord for body repairs (smooth with a brush) 4-door models |
| 1 - | Polyurethane-based sealing adhesive cord |
| 2 - | Eliminate excessive adhesive to ease finishing assembly |
| 1 - | Body repair paste (sprayed) |
| 2 - | Paste cord for body repairs |
| 3 - | Paste cord for body repairs (smooth with a brush) |
| 4 - | Fastening areas free of paste |
| 1 - | Body repair paste (sprayed) |
| 2 - | Fastening areas free of paste |
| 1 - | Fastening areas free of paste |

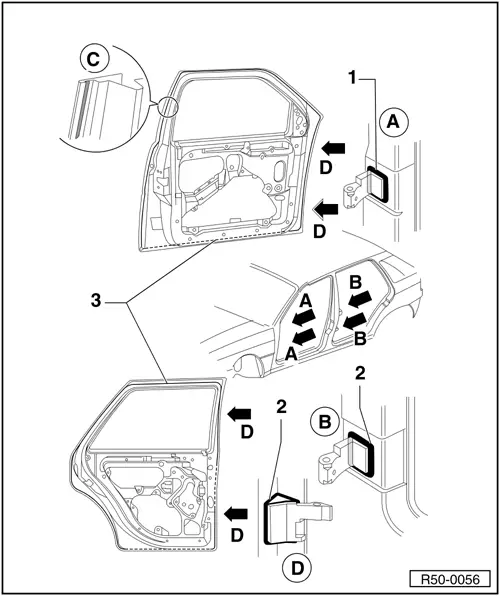

| 1 - | Polyurethane-based sealing adhesive cord |
| 2 - | Polyurethane-base sealing adhesive |
| 3 - | Apply polyurethane-based sealing adhesive chord all around the door's contour, on the external plate fold over the internal plate, as in detail C |
| 1 - | Apply all around the edge of the cover |
| 2 - | Polyurethane-based sealing adhesive cord (smooth with a brush) |
| 1 - | Paste cord for body repairs (smooth with a brush) |
