Gol , Voyage 2009 ? and Saveiro 2010 ? > < Gol 1999 ? and Parati 1999 ? - 5X and 5W
Saveiro 2000 ► - 5X and 5W
Saveiro 2000 ► - 5X and 5W
Product used
Polyurethane-based sealing adhesive → Chapter
Body repair paste → Chapter
Paste for bucket protection → Chapter

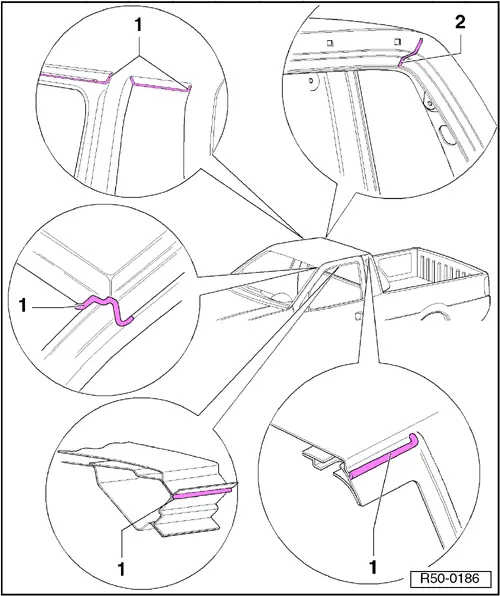

1 - Polyurethane-based sealing adhesive cord (smooth with a brush)

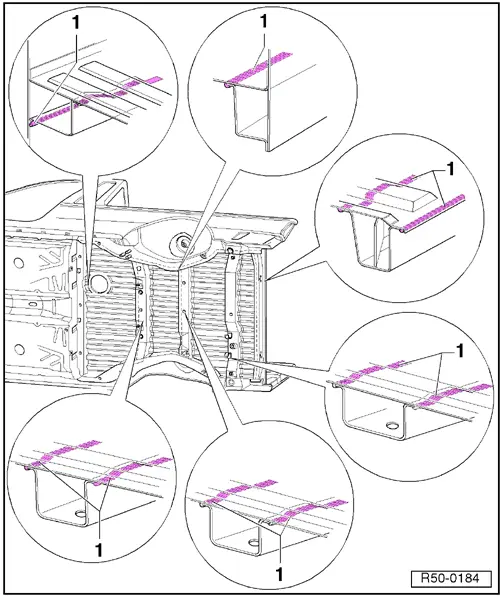

1 - Body repair paste (sprayed) 500 microns
2 - Body repair paste (sprayed) 200 microns
3 - Body repair paste (sprayed) 700 microns


1 - Polyurethane-based sealing adhesive cord (smooth with a brush)


1 - Paste for body protection
2 - Area with thickness reduction
3 - Area free of paste or adhesive
