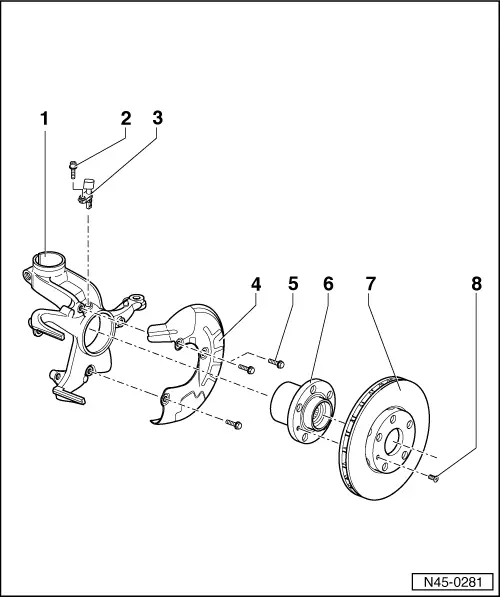

MK 60 front speed sensor cables - remove and install Special tools and workshop equipment required

t  Wiring harness repair set -VAS 1978 - Remove –  Note the coding in vehicles with code radio equipment, request such coding if necessary. –  Disconnect the battery → Electrical system; Rep. Gr.27.

–  Unlock and disconnect the command unit -arrow 1- and pull it -arrow 2-.

–  Release the multiple connector cover cap with a screwdriver and remove it.

–  Unlock the secondary lock (purple) with a small screwdriver in the arrow direction.

ABS/EDS/ASR/ESP MK 60, connector -T47- Pinout for connector -T47- of harness/ABS control unit -J104-. → Electrical diagrams, diagnosis of electrical faults and installation locations.

–  With an extractor from the Harness repair set - VAS 1978-, extract the respective contacts. –  Disconnect the connector from the speed sensor cable and the speed sensor.

–  Also disconnect the connector -1- on vehicles with the brake pad wear indicator. –  Disengage the support cable -2-. –  Remove the defective speed sensor cable and replace with a new cable. Install –  Connect the speed sensor with the speed sensor cable.

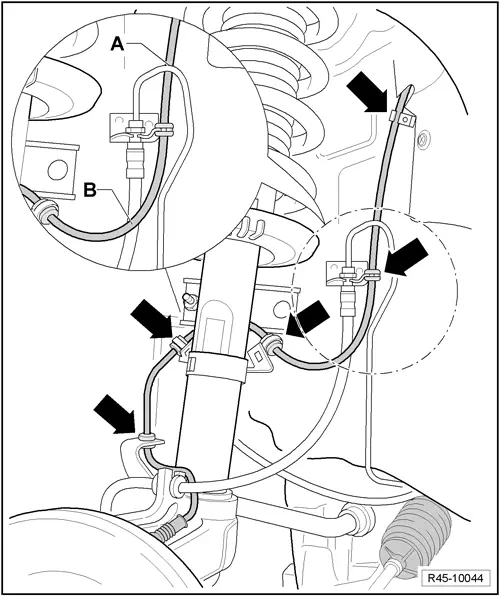

–  Fasten the speed sensor cable-arrows-.   WARNING Ensure that the speed sensor cable at point A passes behind the hydraulic brake tubing, and the cable at point B passes in front of the hydraulic brake tubing. –  Place the brake pad wear indicator connector on the suspension support. –  Insert the contact in the plug.

–  Push the individual cable insulation to the stop with Harness repair set -VAS 1978-. –  Lock the contacts with the secondary lock and place the multiple connector cover cap.
