Polo Mk4

Selector lever and selector lever housing - service
Selector lever and selector lever housing - service
  Note
Lubricate all mountings and contact surfaces with “G 052 142 A2” grease

1 - Circlip
q   Remove and install → Fig.
2 - Bushing
3 - Selector lever spring
4 - Bushing
5 - Torx screw, 5 Nm
6 - Selector lever circlip
7 - Damper
8 - Bearing shell
9 - Selector lever guide
10 - Selector lever bracket
11 - Gasket
q   Between selector lever housing case and floor.
q   Selfadhesive.
q   Bond to selector lever housing.
12 - Selector lever
13 - Damper
14 - Selector lever housing body
15 - Bushing
16 - Fulcrum pin
17 - Guide bush
18 - Spring
q   Install → Fig.
19 - Gate selector bracket
20 - Torx screw, 5 Nm
21 - Base plate
q   Open braces to remove.
q   Always renew.
22 - Gate selector cable
q   On gate selector bracket.
q   Installation position → Chapter.
23 - Gear selector cable
q   Press onto selector lever guide.
q   Installation position → Chapter.
24 - Lock ring
25 - Hexagon nut, 25 Nm
q   4 units.
26 - Bracket bush
q   It has only one assembly position.
27 - Circlip

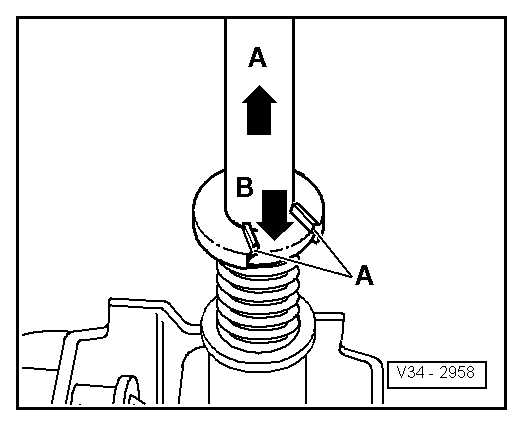

Remove and install circlip
–  To remove and install the circlip pull selector lever in arrow direction A and at the same time push down spacer bush onto stop with a screwdriver in arrow direction B.
  Note
t  Ensure spacer bush is not canted when pressing down
t  Mounting slot for circlip must be visible
t  Carefully relieve spring tension
  V34-2958
Installing spring
–  Insert spring so that the spring extension -A- lies above pin -arrow-.
–  Then pull spring extension -B- towards selector lever until it lies on the lower section of pin -arrow-.
  N34-1119
