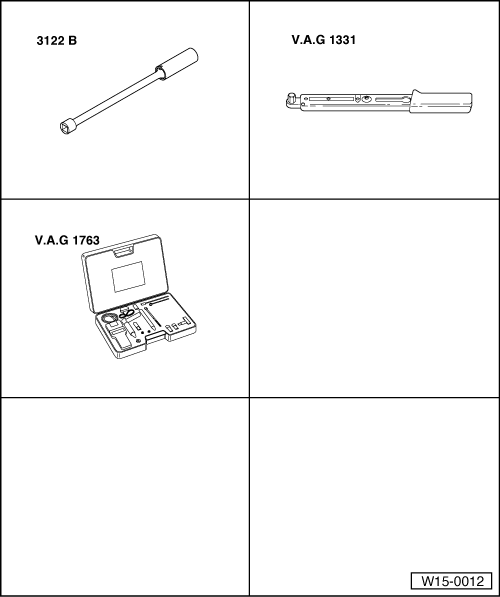

| Special tools and workshop equipment required |
| t
| Spark plug wrench -3122B- |
| t
| Torque wrench - 5 to 50 Nm ( enc. 1/2") -VAG 1331- |
| t
| Cylinder bore tester - petrol/ethanol -VAG
1763- |
| l
| The engine oil temperature must be at least 30°C. |
| l
| Voltage of Battery -A- must be
at least 11.5 volts. |
| l
| All electrical components, such as lights and thermal rear
window, must be turned off. |
| l
| If the vehicle is equipped with air conditioning, turn it off. |
|
|
|
