Air filter case - disassemble and assemble

BAH/BPA engines

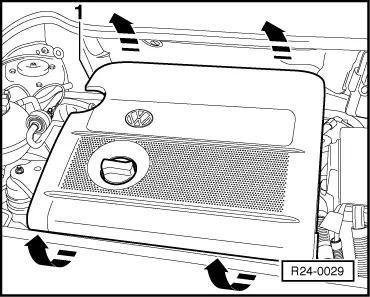

Remove and install air filter case → Chapter.

1 -	Lower part of the air filter case

2 -	Rubber base

3 -

3 Nm

q	Observe indications on installation → Chapter.

4 -	Butterfly body sealing ring

q	Ensure firm seating.

q	Replace when damaged.

5 -	Intake connecting pipe

6 -

Lid

7 -	Upper part of the air filter case

8 -	Sealing gasket

q	Observe installation position.

q	Replace when damaged.

9 -	Filtering element

CCRA engine

1 -

Air duct

2 -

Clamp

q	Remove with VAS 5024A or Standard type clamp pliers -VW 5162-.

3 -	Upper part of filter air

4 -

1.6 Nm

5 -	Filtering element

6 -	Lower part of filter air

7 -

8 Nm

8 -

Air duct

9 -

1.5 Nm
