Service valves - location
Service valves - location
  Note
t  The service valves are located in the engine compartment, at the right side of the vehicle, near the front end.
t  Other available equipment and tools for tests may also be used; refer to → Air conditioning with R134a refrigerant; Rep. gr.00.

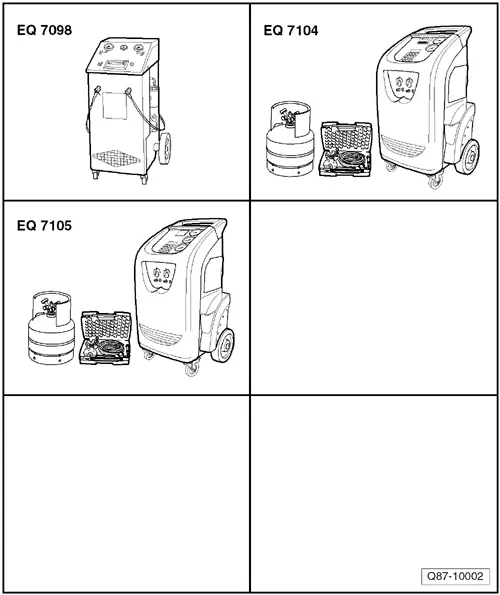

Special tools and workshop equipment required
t  Climate control recovery, recycling and refill set or VAS 6008 -EQ 7098-
t  Climate control recovery, recycling, refill and cleaning set -EQ 7104-
t  Climate control recovery, recycling, refill and cleaning set -EQ 7105-

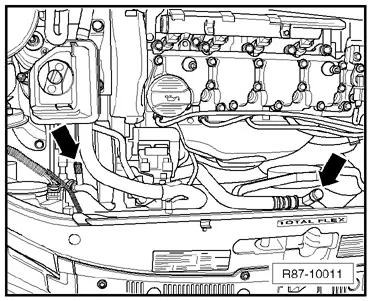

–  Connect the Climate control recovery, recycling and refill set or VAS 6008 -EQ 7098- or similar equipment to the service valves -arrows- in the refrigerant circuit and aspirate all the gas → Air conditioning with R134a refrigerant; Rep. gr.00.
  R87-10011
