Vehicle electricsCombined instrumentK - remove
and install
| Combined instrument -K- - remove
and install |
WARNING | Before executing any work on the electric system, it is necessary
to disconnect the battery -A- → Chapter earth cable. |
|
Note | t
| Check whether the vehicle has a coded radio. If so, request
the anti-theft code before disconnecting the Battery -A- earth wire. |
| t
| Before removing the Combined instrument -K-, observe the notes and work instructions for troubleshooting → Chapter. |
| t
| Upon reconnecting the Battery -A-, check the vehicle equipment (radio, clock, power locks and windows,
etc.) according to the Workshop Manual and/or instructions for use. |
| Special tools and workshop equipment required |
|
|
|
| t

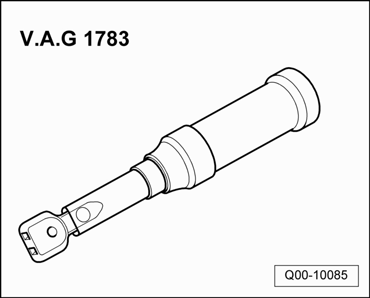

| Torque wrench 2 to 10 Nm -VAG 1783- |
|
|
|
04 General
