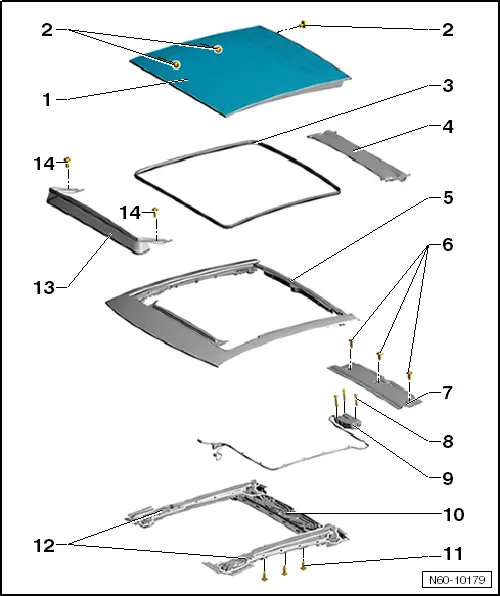

| Assembly overview - panorama tilting sunroof |
| 1 - | Glass panel for panorama tilting sunroof (single pane safety glass) |
| q | Removing glass panel for panorama tilting sunroof: → Chapter |
| q | If drive defective, remove glass panel → Chapter |
| q | Installing glass panel for panorama tilting sunroof: → Chapter |
| q | Adjusting glass panel for panorama tilting sunroof: → Chapter |
| 2 - | Bolt |
| q | Bolts are microencapsulated and must always be renewed after loosening. |
| q | Qty. 6. |
| q | 5.5 Nm |
| 3 - | Seal |
| q | Removing and installing → Chapter |
| 4 - | Sun blind |
| q | Removing and installing → Chapter |
| 5 - | Assembly frame |
| q | Removing and installing assembly frame → Chapter |
| q | Guide channels are to be greased, if required, with special grease G 000 450 02 only otherwise correct operation cannot be guaranteed. |
| 6 - | Bolt |
| q | For the cover |
| q | Qty. 3. |
| q | 2.5 Nm |
| 7 - | Cover |
| 8 - | Bolt |
| q | For the sliding roof motor |
| q | Qty. 3. |
| q | 4 Nm |
| 9 - | Electric drive |
| q | Removing → Chapter |
| q | If drive defective, remove |
| q | Initialising the drive → Chapter |
| 10 - | Securing bracket |
| q | For sun blind and drive |
| q | Forms one component in conjunction with the guide rails |
| q | Removing and installing → Chapter |
| 11 - | Bolt |
| q | Bolts are microencapsulated and must always be renewed after loosening. |
| q | Qty. 13. |
| q | 3 Nm |
| 12 - | Guide rails |
| q | With tilting mechanism and cables |
| q | Forms one component in conjunction with securing bracket |
| q | Removing and installing → Chapter |
| 13 - | Wind deflector |
| 14 - | Bolt |
| q | For wind deflector. |
| q | Qty. 2. |
| q | 2 Nm |
