Polo Mk5
| Panoramic sliding roof normalisation run |
Note| t | If a glass panel, motor or tilting mechanism is replaced, a normalisation run must be carried out. |
| t | Roll-back function is switched off when establishing reference points. |
| Establishing reference points of sliding sunroof motor |
| Ignition is switched on. |

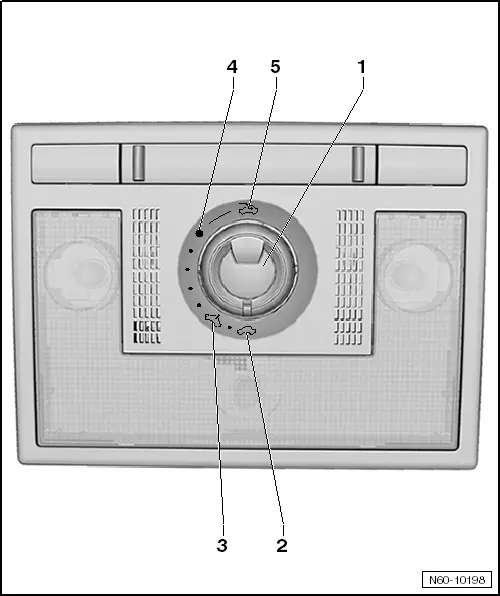

| Rotary knob must be in position -2-, „Sliding roof closed“. |
| – | Pull rotary knob -1- downwards and hold in this position during the entire normalisation process (approx. 20 sec). |
| – | When establishing reference points, glass panel first closes and then moves approx. 200 mm towards the rear. |
| – | Once glass panel has closed again, the normalisation run is finished and rotary knob can be released. |
