Polo Mk5
| Installing glass panel |
Note| Bolts are microencapsulated and must always be renewed after loosening. |
| Carry out following work: |

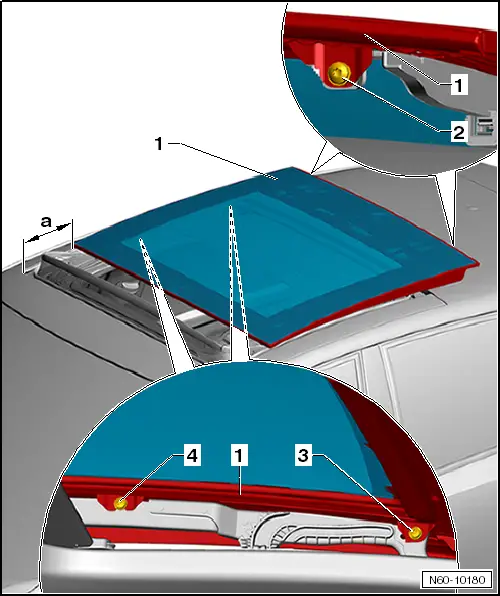

| – | Open mechanism by 150 mm -dimension a- with the pushbutton. |
| – | Place glass panel -1- on the tilting mechanism. |
| – | Lightly tighten securing bolts -2, 3 and 4- on left and right. |
| – | Adjust panorama tilting sunroof glass panel (height adjustment): → Chapter |
Note| After adjusting panel height, tighten securing screws -5- (5.5 Nm). |
