Polo Mk5

Gaskets, seals and oil
Gaskets, seals and oil
t  Always renew O-rings, seals and gaskets.

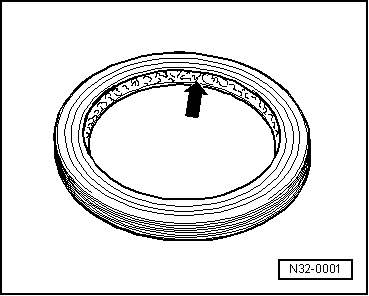

t  Before installing a radial oil seal, coat sealing lips and area between them with sealing grease -G 052 128-.
t  Open side of oil seal faces oil.
t  After installing, check ATF level.
  Caution
Use caution when handling oil. Dispose of used oil properly. One drop of oil will contaminate 1,000 litres of water.
  N32-0001
