Polo Mk5

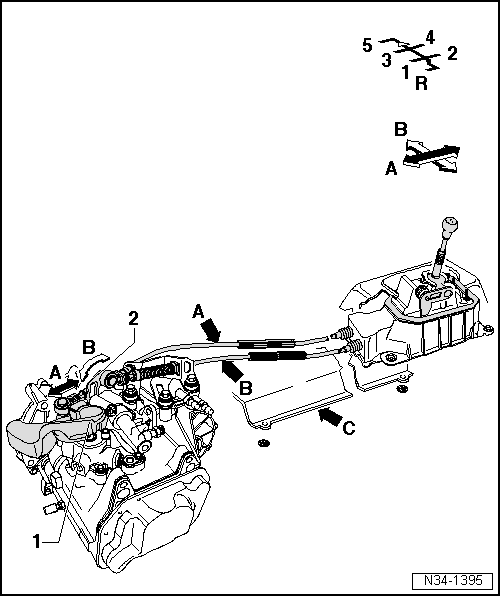

| Installation position of selector mechanism |
| Arrow -A- Gear selection movement |
| Arrow -B- Gate selection movement |
| A - | Gear selector cable |
| B - | Gate selector cable |
| C - | Heat shield |
| q | Remove before removing selector mechanism. |
| 1 - | Gearbox selector lever |
| 2 - | Relay lever |
