Polo Mk5
| Overview of selector mechanism |
Note| t | Note radio code for vehicles with coded radio. |
| t | Before working on selector mechanism in engine compartment, disconnect earth strap from battery → Electrical system; Rep. gr.27. |
| t | When reconnecting battery, perform work required after connecting battery → Electrical system; Rep. gr.27. |
| t | For work on selector mechanism in engine compartment, remove complete air filter housing if it is located over selector mechanism → Rep. gr.23 or → Rep. gr.24 |
| t | Remove selector mechanism to renew selector cables → Chapter. |
| t | Do not kink selector cables. |

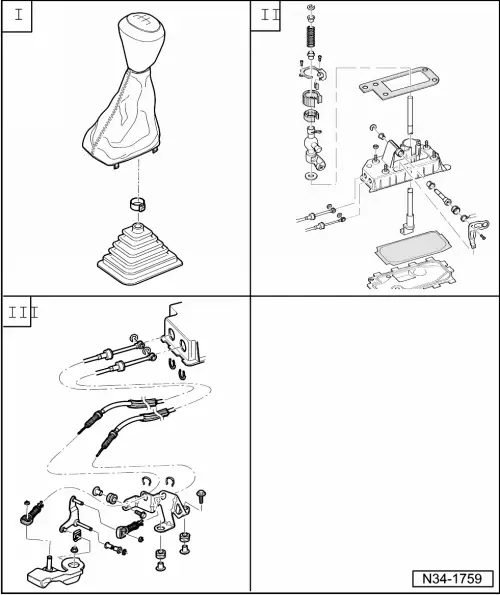

| I - | Assembly overview - gear knob and cover → Chapter |
| II - | Repairing gear lever and selector housing → Chapter. |
| III - | Assembly overview - removing and installing selector cables → Chapter. |
|
