Polo Mk5

Checking current consumption of fuel system pressurisation pump
Checking current consumption of fuel system pressurisation pump
Special tools and workshop equipment required
t  Vehicle diagnosis tester
t  Hand-held multimeter -V.A.G 1526D- or pickup clamp -V.A.G 1526B/2-
t  Test instrument adapter/DSO (5-pin) -VAS 5565-
t  Vehicle diagnosis tester
  Note
t  The battery voltage and the diesel fuel temperature have a great influence on the current draw of the fuel pump. This is why it must be ensured that battery voltage is at least 12.5 V whilst checking.
t  Depending on the season, make sure that the vehicle is filled with winter diesel if necessary.
Test prerequisites
l  Battery voltage at least 12.5 V
l  Diesel fuel temperature above 10 °C
»Carry out the following work sequence«
–  Fold rear seat bench up → General body repairs, interior; Rep. gr.72.
–  Raise cover of fuel delivery unit.

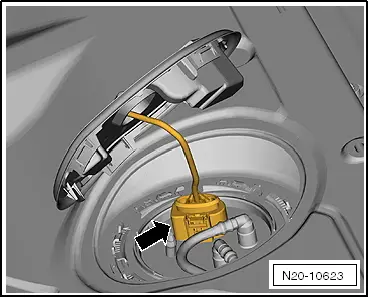

–  First check that connector -arrow- is fitted securely by pulling connector without pressing catch. The connector can cause a fault if it has not been fitted correctly.
  N20-10623

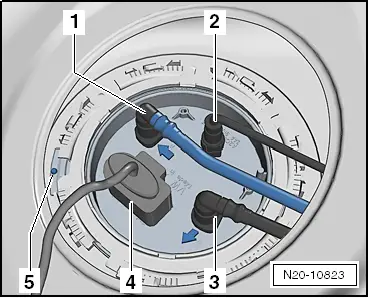

–  Pull off connector -4-.
  N20-10823

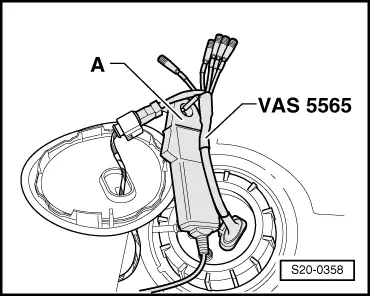

–  Connect test instrument/DSO adapter (5-pin) -VAS 5565- to connector and fuel delivery unit.
–  Connect pick-up clamp -A- to red cable - with lettering „pick-up clamp“ - of test instrument/DSO adapter (5-pin) -VAS 5565-.
  Note
Pickup clamp of hand-held multimeter -V.A.G 1715- can also be connected to red terminal with lettering „pickup clamp“ of test instrument adapter/DSO (5-pin) -VAS 5565-.
–  Switch ignition on.
–  Connect vehicle diagnosis tester and carry out guided function „Checking electronic fuel pump(s)“.
  Note
The fuel pump is now activated for 30 seconds.
–  Read current draw on hand-held multimeter -V.A.G 1526D-: Specification: min. 8.0 amperes, max. 14.0 amperes.
If the measured value is not within specifications:
–  Remove fuel delivery unit → Chapter.
–  Check that the electrical lines between flange and fuel pump are connected and have continuity.
If no open circuit can be found
–  Renew fuel delivery unit → Chapter
  S20-0358
