Polo Mk5

Checking voltage supply of fuel system pressurisation pump
Checking voltage supply of fuel system pressurisation pump
Special tools and workshop equipment required
t  Vehicle diagnosis tester
t  Pickup clamp -V.A.G 1526B/2-

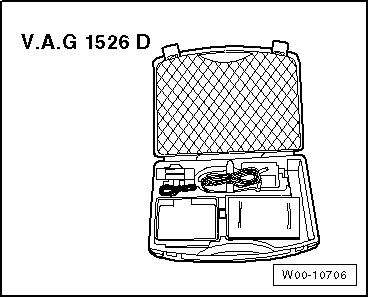

t  Hand-held multimeter -V.A.G 1526D-
  W00-10706

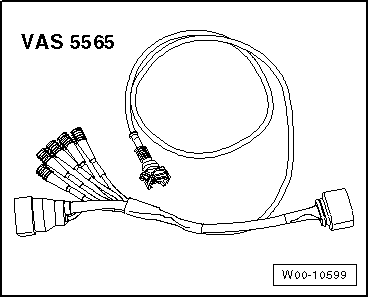

t  Test instrument adapter/DSO (5-pin) -VAS 5565-
Test prerequisites
l  Fuses must be OK.
l  The battery voltage must be at least 12 V, if necessary connect a battery charger.
l  All electrical consumers, e.g. lights and rear window heating, must be switched off.
l  Visual check of cables OK.
Test sequence:
–  Fold up rear seat on right vertically → General body repairs → Rep. gr.72.
–  Raise cover of fuel delivery unit.
  W00-10599

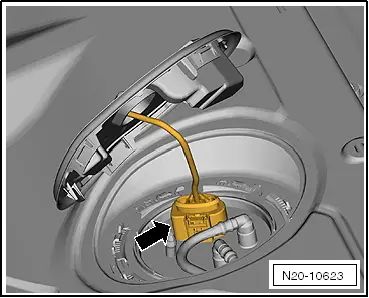

–  First check that connector -arrow- is fitted securely by pulling connector without pressing catch. The connector can cause a fault if it has not been fitted correctly.
–  Pull connector off fuel delivery unit flange.
–  Connect test instrument/DSO adapter (5-pin) -VAS 5565- between connector and flange.
  N20-10623

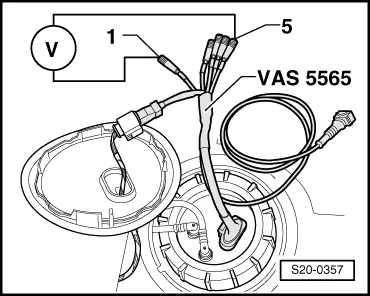

–  Connect hand-held multimeter -V.A.G 1526D- to contacts -1- and -5- of adapter.
–  Connect vehicle diagnosis tester and carry out guided function „Checking electronic fuel pump(s)“.
  Note
The fuel pump is now activated for 30 seconds.
–  Read voltage value on hand-held multimeter -V.A.G 1526D-: specification = battery voltage (- 0.5 V OK).
If no voltage is present:
–  Check activation of fuel pump relay and wiring for an open or short circuit → Vehicle diagnostic, testing and information system VAS 5051.
Voltage supply OK.
–  Check current consumption of fuel pump → Chapter.
  S20-0357
