R32 4Motion V6-3.2L (CBRA) (2008)

Page 1
background image

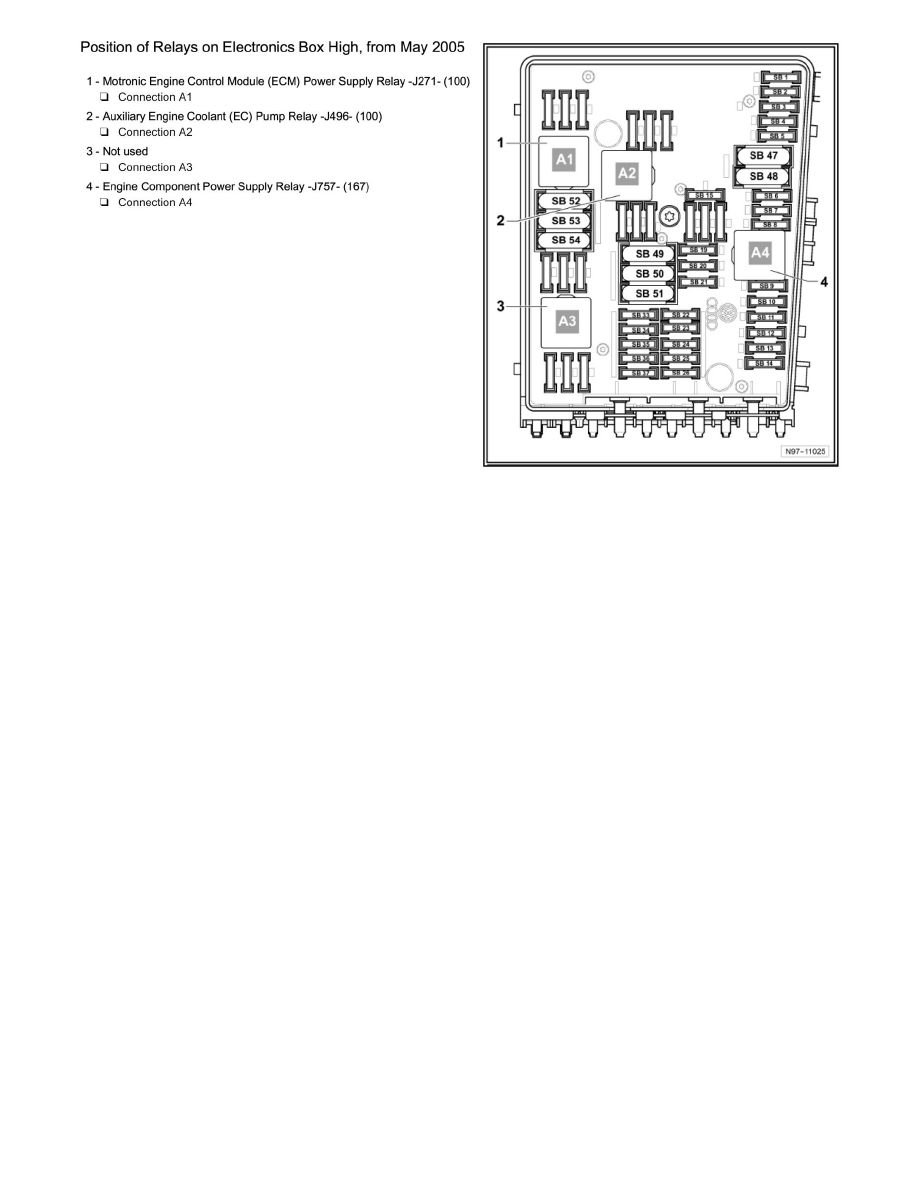

Position Of Relays On Electronics Box High
